C13ENTM77.10

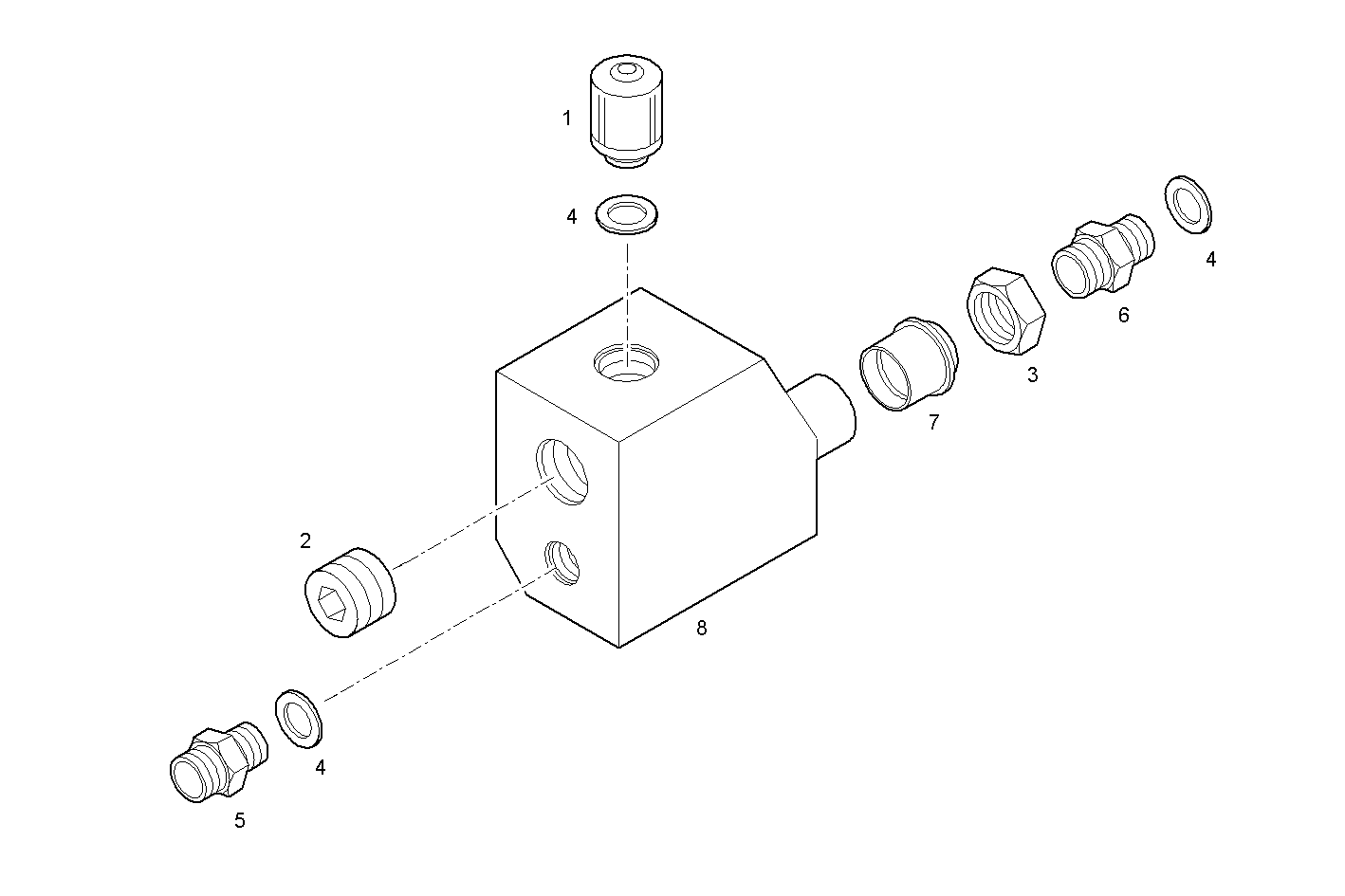

2034.012 FUEL LINES - FILTER TO CYLINDER HEAD [FROM 02-07-06] [FROM 02-07-06]
| Item | Part number | Description |
|---|---|---|
| 1 | 504112433 | REDUCTION VALVE M16X1,5 |
| 2 | 16997611 | THREADED PLUG M20X1,5 |
| 3 | 16507115 | NUT M26 |
| 4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 5 | 41031568 | THREADED UNION M16X1,5 |
| 6 | 8043767 | PIPE SOCKET M26X1,5 - M16X1,5 |
| 7 | 16507814 | WASHER Ø18 MM |
| 8 | 8043766 | PIPE SOCKET |
