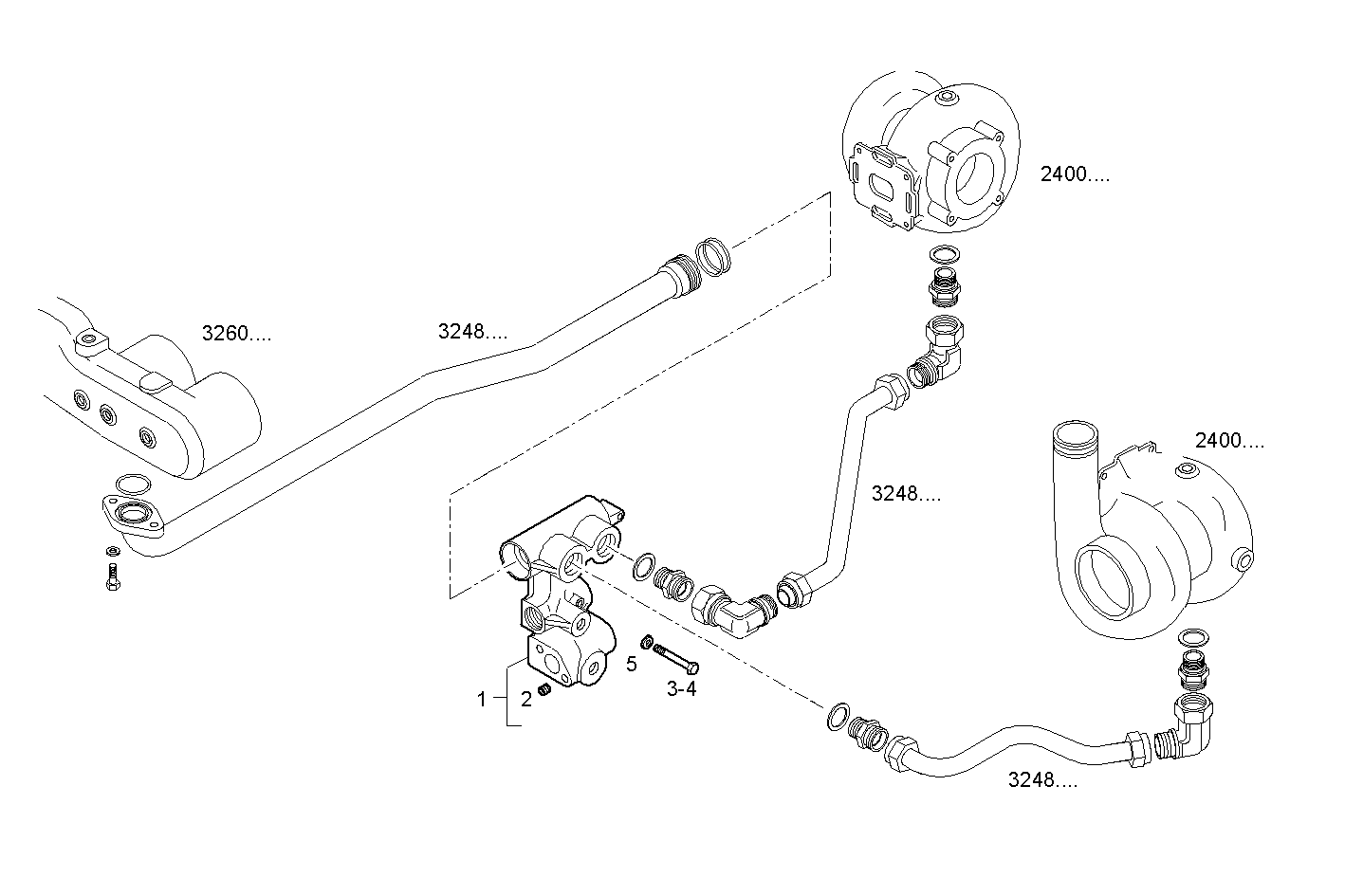

3246.004 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8041704 | DISTRIBUTOR ASSY |
| 2 | 17873271 | THREADED INSERT M8 |
| 3 | 16606824 | HEXAGON BOLT M8X100 MM |
| 4 | 16606324 | HEXAGON BOLT M8X60 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
