C13ENTM77.10

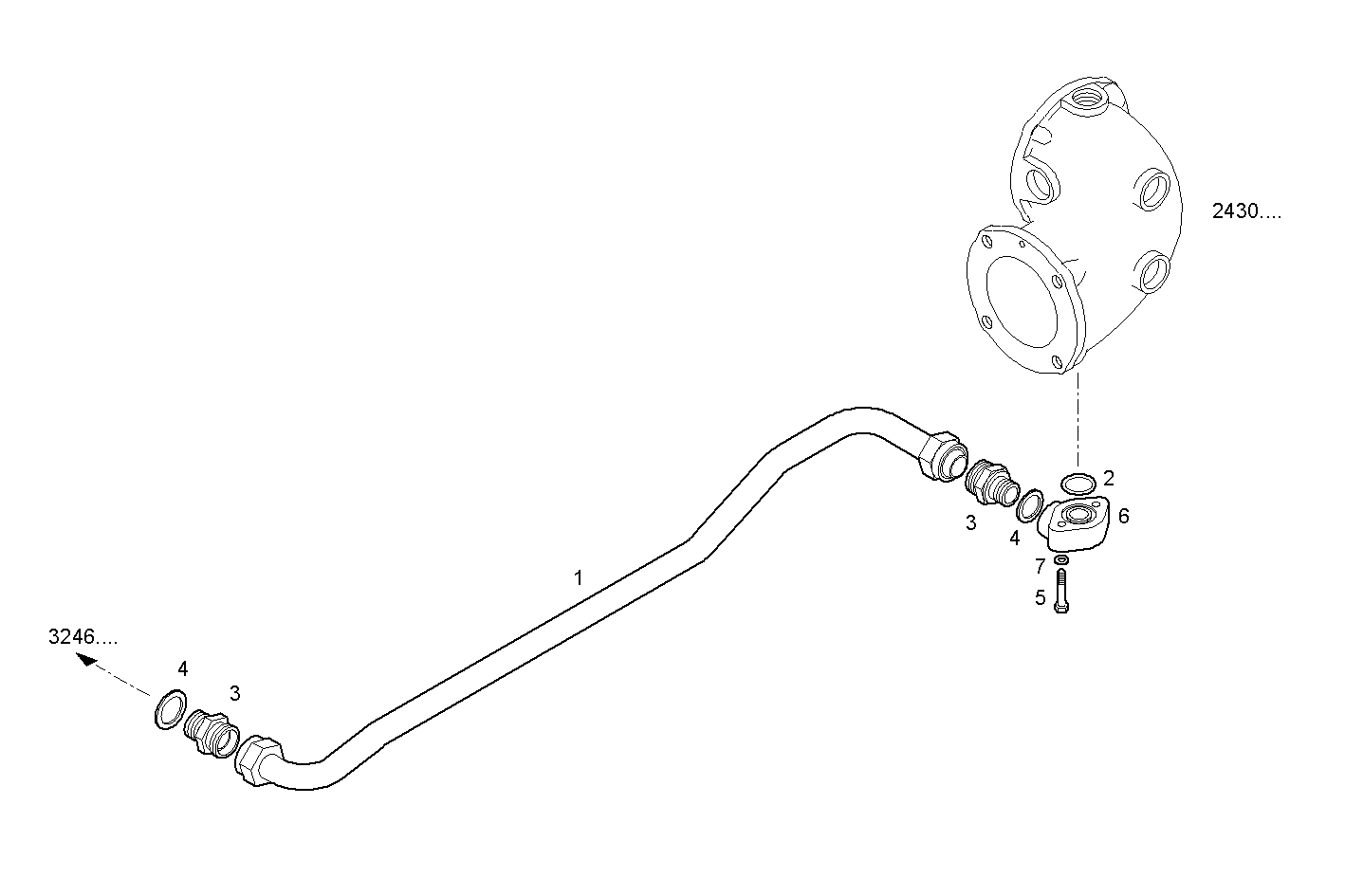

3246.005 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8040899 | WATER PIPE |
| 2 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 3 | 16500514 | THREADED UNION M22X1,5 - M26X1,5 |
| 4 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 5 | 16604024 | HEXAGON BOLT M6X35 MM |
| 6 | 8031032 | FLANGED SOCKET |
| 7 | 17088474 | WASHER Ø6X12 MM |
