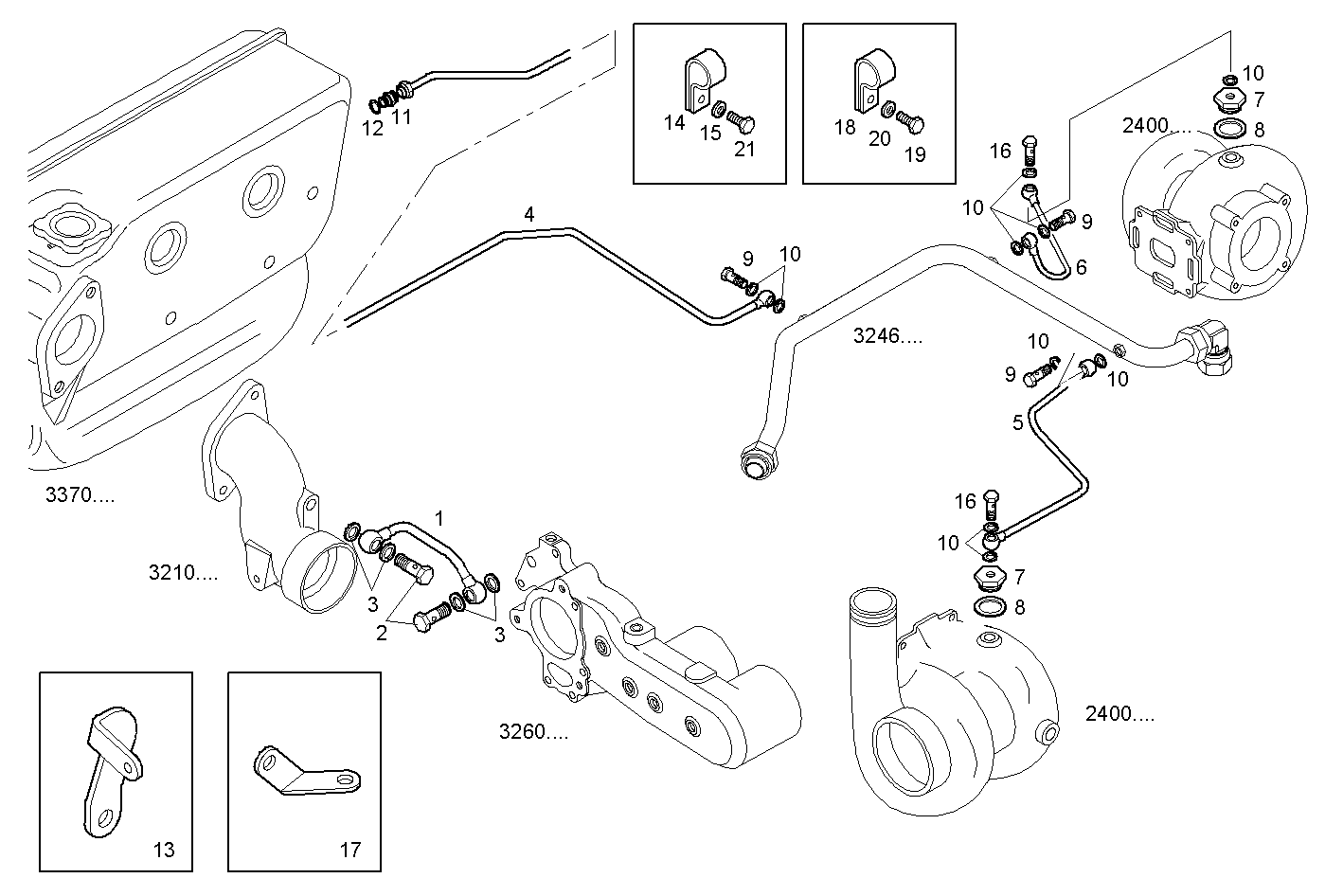

| Item |
Part number |
Description |
|
1 |
8049386 |
BREATHER PIPE |
|
2 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
3 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
4 |
8040921 |
BREATHER PIPE |
|
5 |
8040944 |
BREATHER PIPE |
|
6 |
8040947 |
BREATHER PIPE |
|
7 |
8041986 |
THREADED UNION |
|
8 |
99489024 |
SEAL GASKET dia. 26x36x1,5 |
|
9 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
10 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
11 |
16500114 |
THREADED UNION M12X1,5 - M14X1,5 |
|
12 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
13 |
8041161 |
RETAINER |
|
14 |
17314790 |
FASTENING BRACKET Ø8 MM |
|
15 |
17088774 |
WASHER Ø6 MM |
|
16 |
4864079 |
SCREW CONNECTOR M10X1 |
|
17 |
8008962 |
RETAINER |
|
18 |
10450090 |
PIPE CLIP Ø8 MM |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
16603425 |
HEXAGON BOLT M6X10 |
