Catalogue Menu
C13ENTM77.10

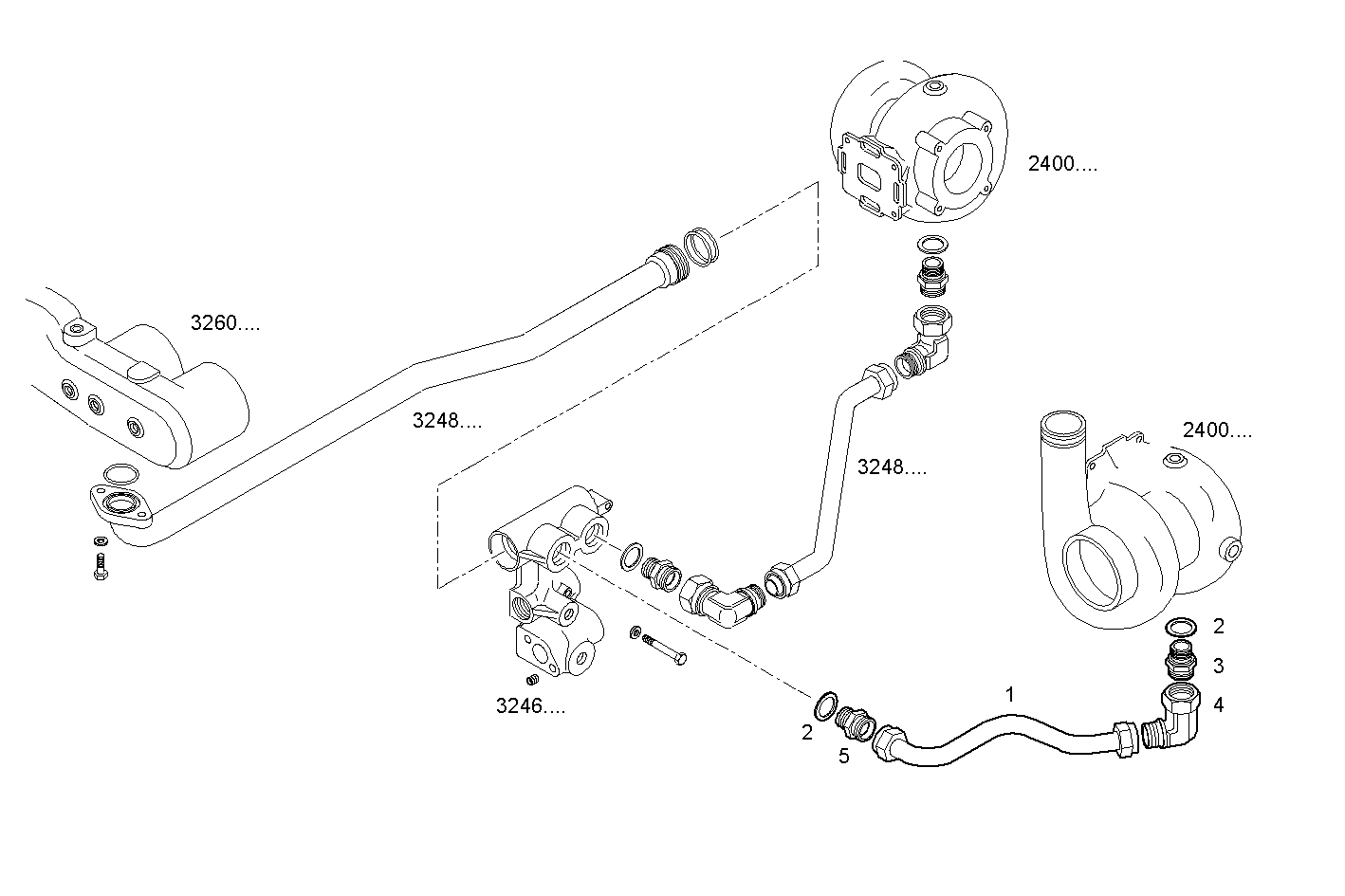

3248.014 TURBO WATER OUTLET PIPE - Longitudinal
Item | Part number | Description |
---|---|---|
1 | 8040871 | WATER PIPE |
2 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
3 | 8110943 | PIPE SOCKET M30X1,5/M25X1,5 |
4 | 16526514 | ELBOW COUPLING |
5 | 41031577 | THREADED UNION M26X1,5/M30X2,0 |
