C13ENTM77.10

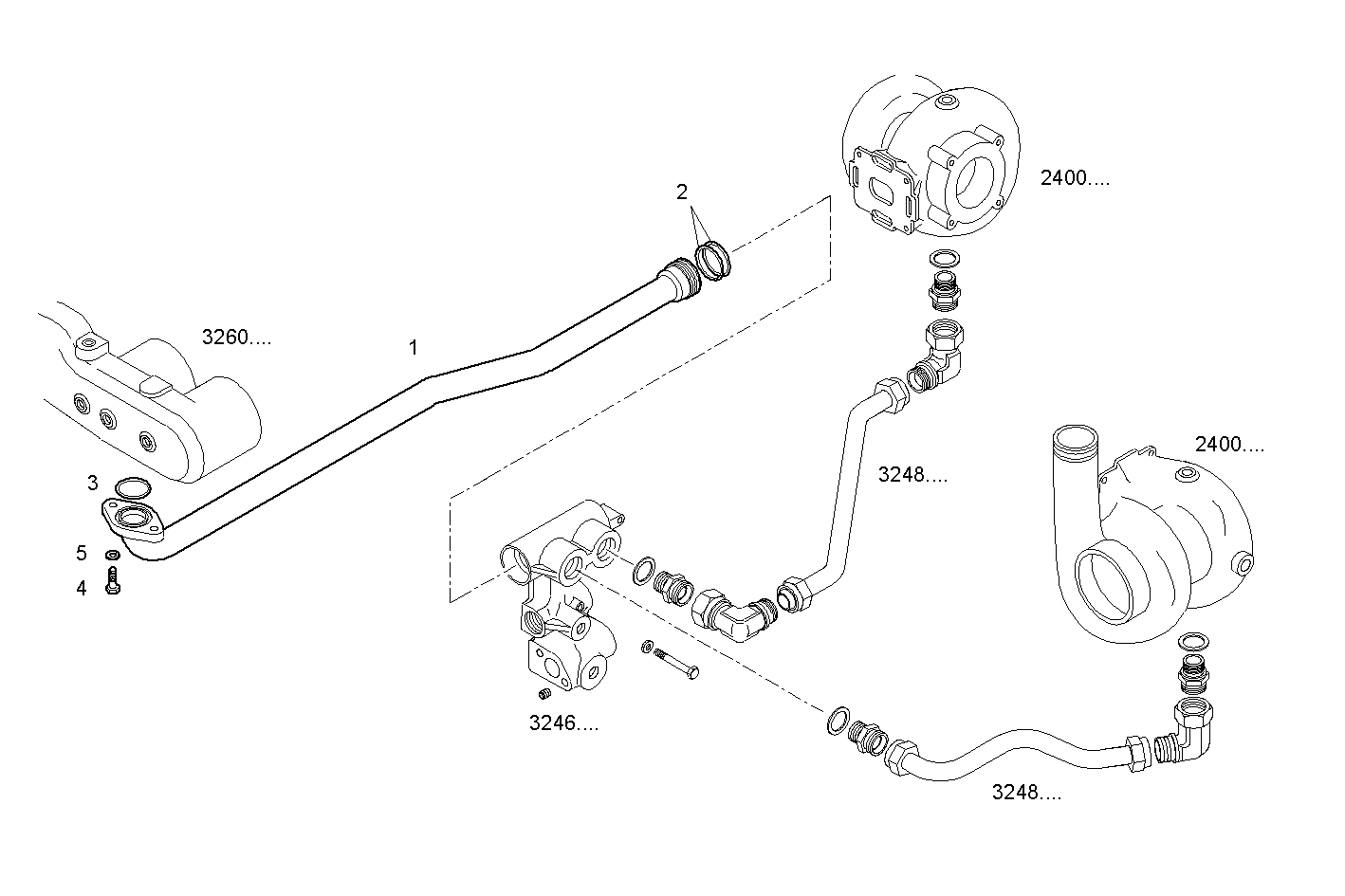

3248.023 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8040274 | WATER PIPE |
| 2 | 17283381 | O-RING Ø40,94X2,62 MM |
| 3 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
