C13ENTM77.10

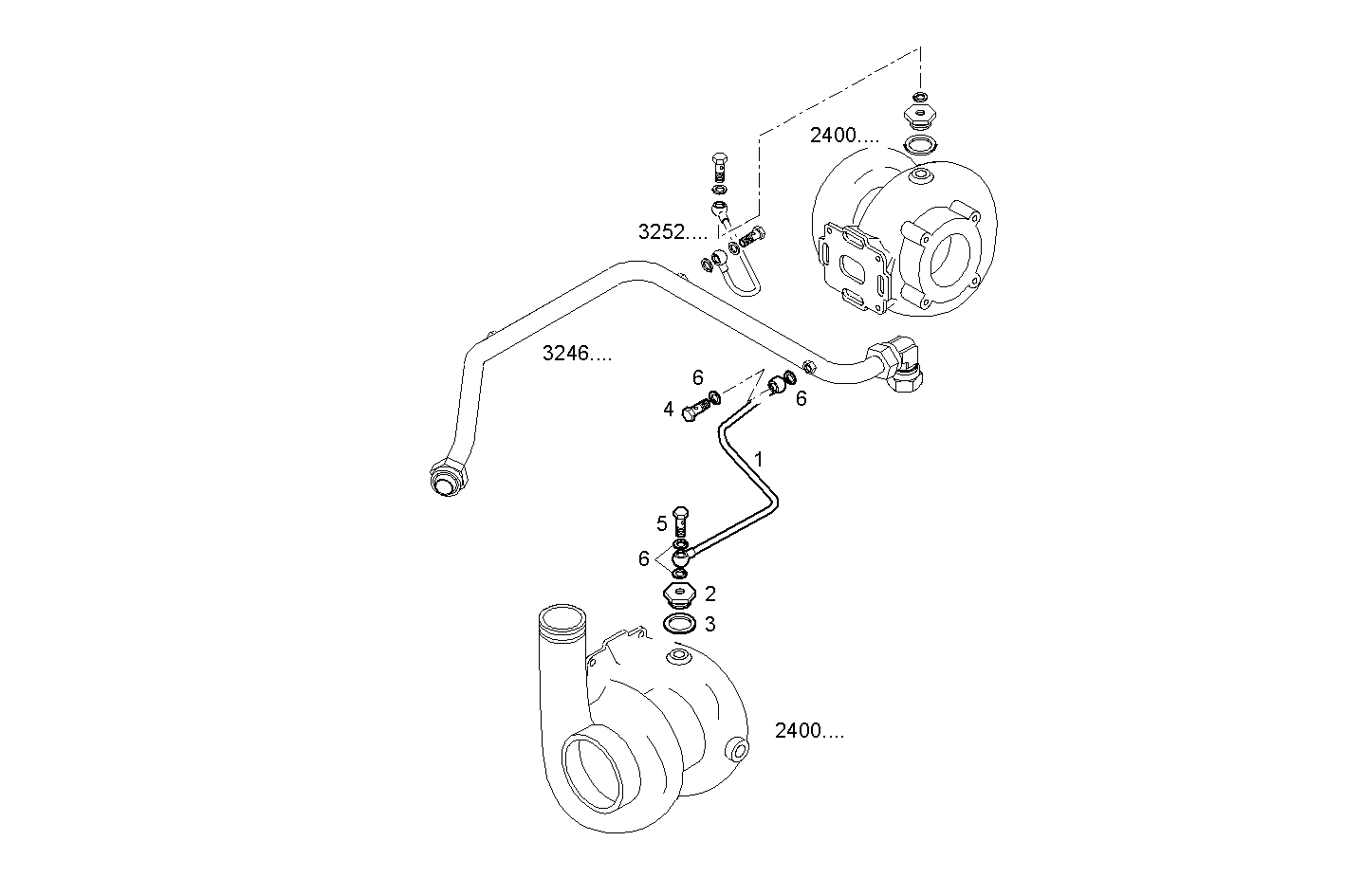

3252.031 BLEEDER TUBING [FROM 07-02-06] [FROM 07-02-06]
Item | Part number | Description |
---|---|---|
1 | 8040944 | BREATHER PIPE |
2 | 8041986 | THREADED UNION |
3 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
4 | 4864080 | SCREW CONNECTOR M10X1,25 |
5 | 4864079 | SCREW CONNECTOR M10X1 |
6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
