C13ENTM77.10

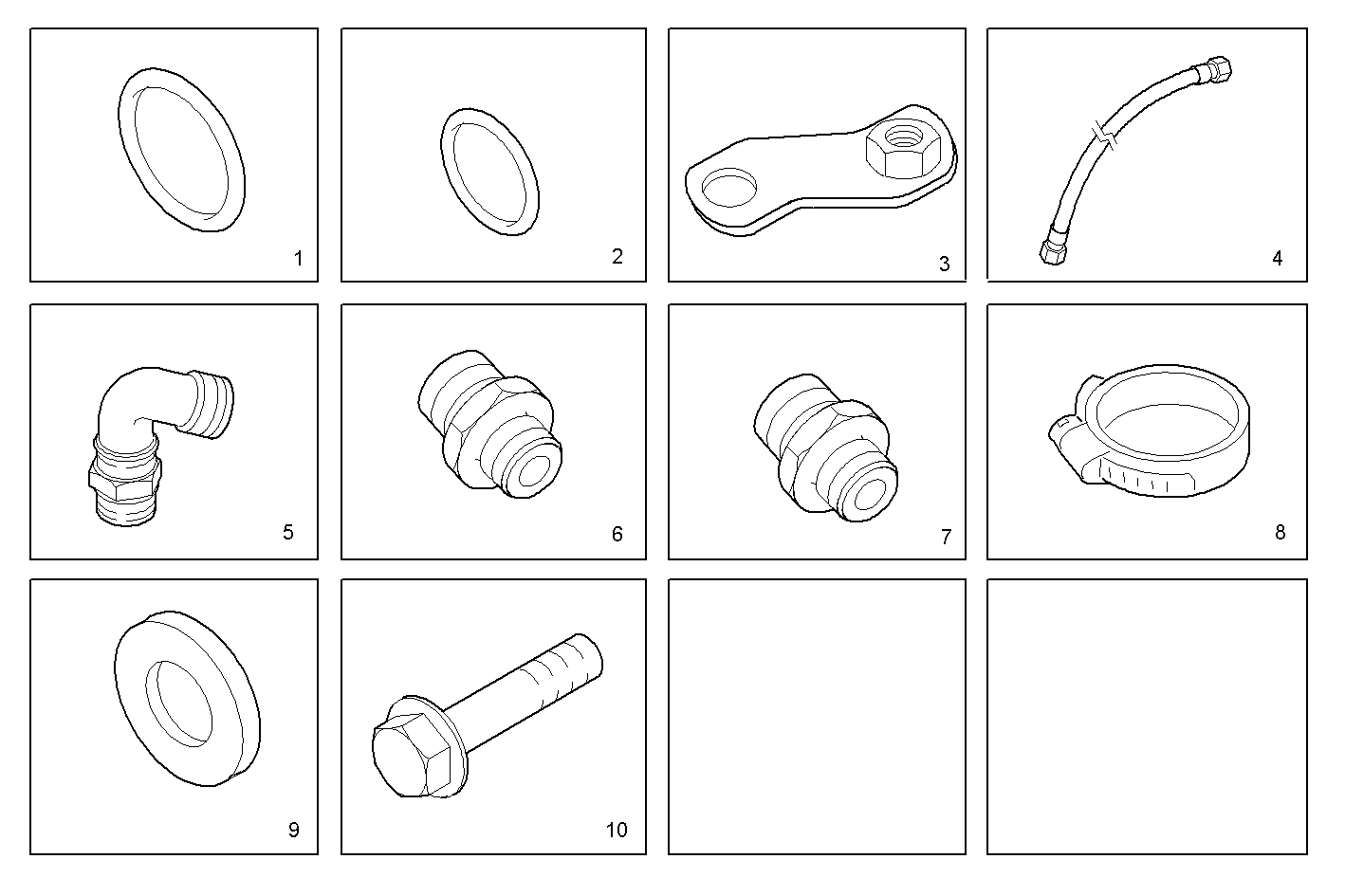

A17070503/02 DOUBLE OIL FILTER [FROM 14/04/06] [FROM 14/04/06]
| Item | Part number | Description |
|---|---|---|
| 1 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 2 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 3 | 8107203 | RETAINER |
| 4 | 8043676 | OIL LINE |
| 5 | 8025927 | ELBOW COUPLING |
| 6 | 500300594 | THREADED UNION M18X1,5 - M14X1,5 |
| 7 | 41905554 | PIPE SOCKET M14X1,5 - M16X1,5 |
| 8 | 17316490 | CLIP |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
