C13ENTM77.10

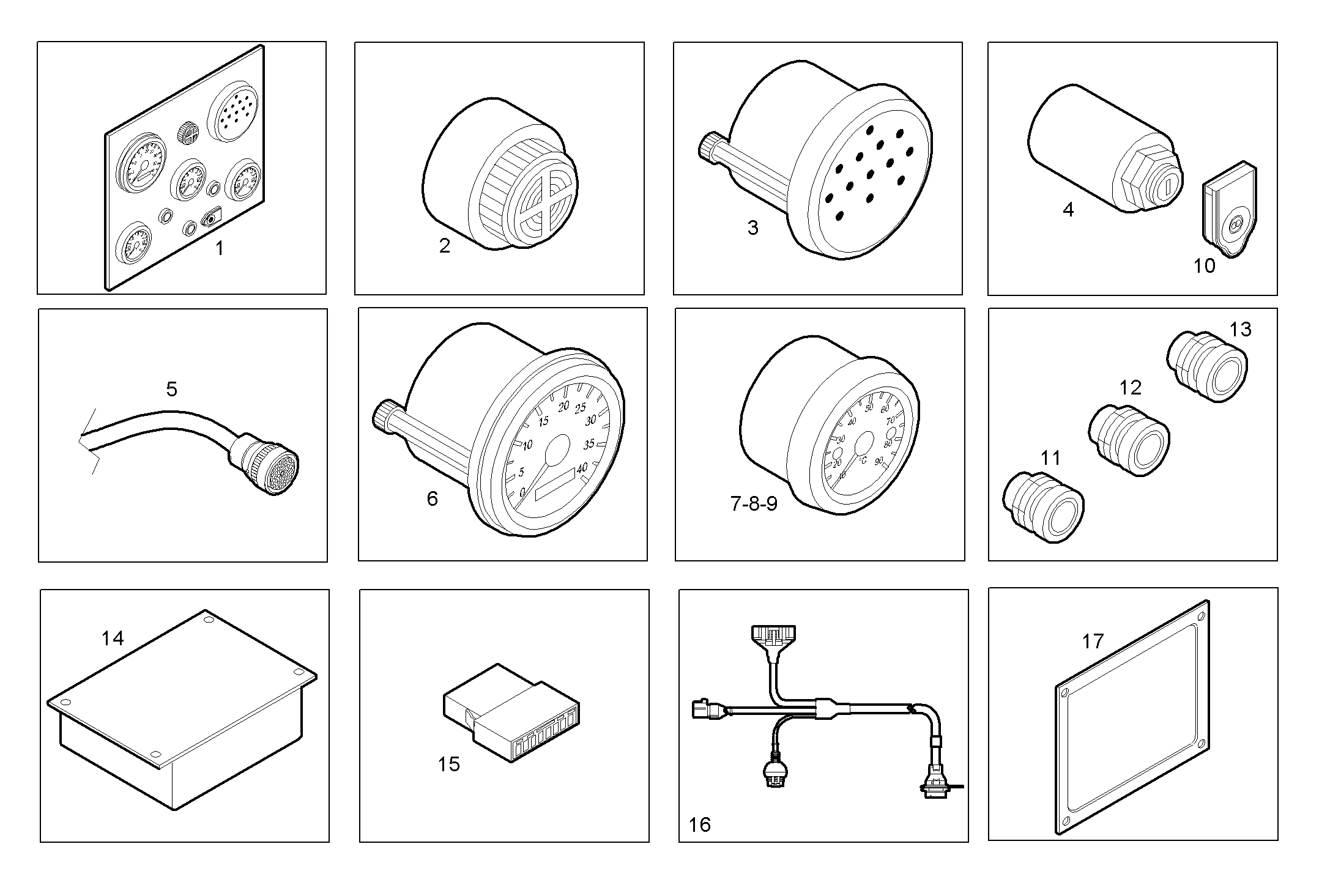

A38780513 PANEL WITH ELECTRICAL INSTRUMENTS - 24V analog. + lead ext. 3 mt.
| Item | Part number | Description |
|---|---|---|
| 1 | 8037767 | CONTROL BOARD ASSY ASSY |
| 2 | 8035166 | ACOUSTIC HORN |
| 3 | 8034892 | WARNING LIGHT |
| 4 | 8035169 | SWITCH |
| 5 | 8035991 | EXTENSION L=3000 mm. |
| 6 | 8036144 | REVOLUTION COUNTER |
| 7 | 8036175 | THERMOMETER |
| 8 | 8036176 | PRESSURE GAUGE |
| 9 | 8036174 | VOLTMETER |
| 10 | 8035172 | COVER |
| 11 | 8036409 | PUSH BUTTON BLACK COL. |
| 12 | 8035712 | PUSH BUTTON |
| 13 | 8036411 | PUSH BUTTON RED |
| 14 | 8041475 | SWITCH PANEL analogical converter |
| 15 | 8042637 | WIRE CONNECTOR |
| 16 | 8041699 | EXTENSION interface analog.panel |
| 17 | 8044808 | SEAL GASKET |
