C13ENTM77.10

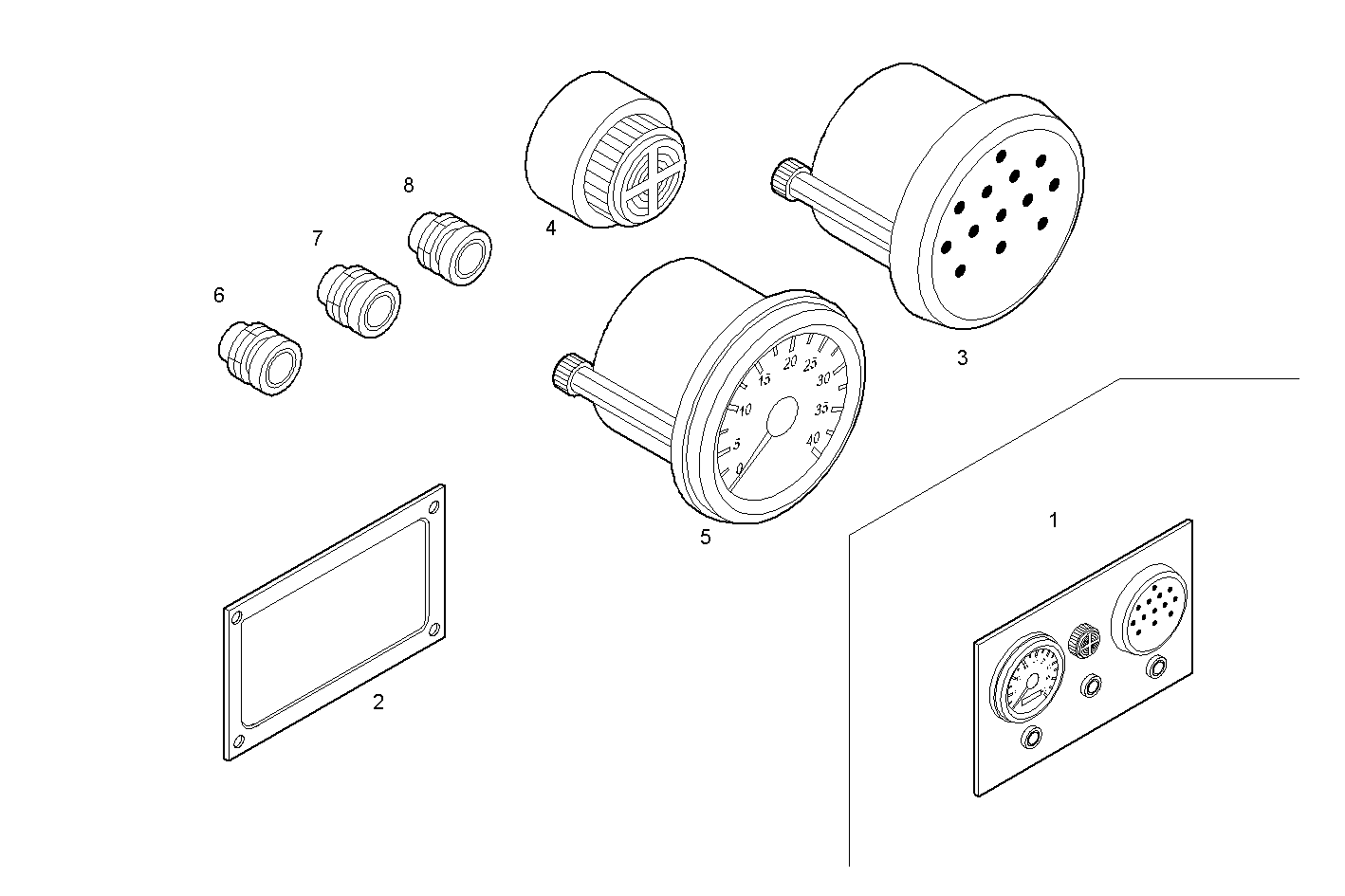

A38840513 ELECTRIC INSTRUMENTS PANEL - fly 12V-24V anal. [FROM 02/02/06] [FROM 02/02/06]

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8037775 CONTROL BOARD ASSY ASSY
2 8044809 SEAL GASKET
3 8034892 WARNING LIGHT
4 8035166 ACOUSTIC HORN
5 8036197 REVOLUTION COUNTER
6 8036409 PUSH BUTTON BLACK COL.
7 8036411 PUSH BUTTON RED
8 8036412 PUSH BUTTON GREEN
