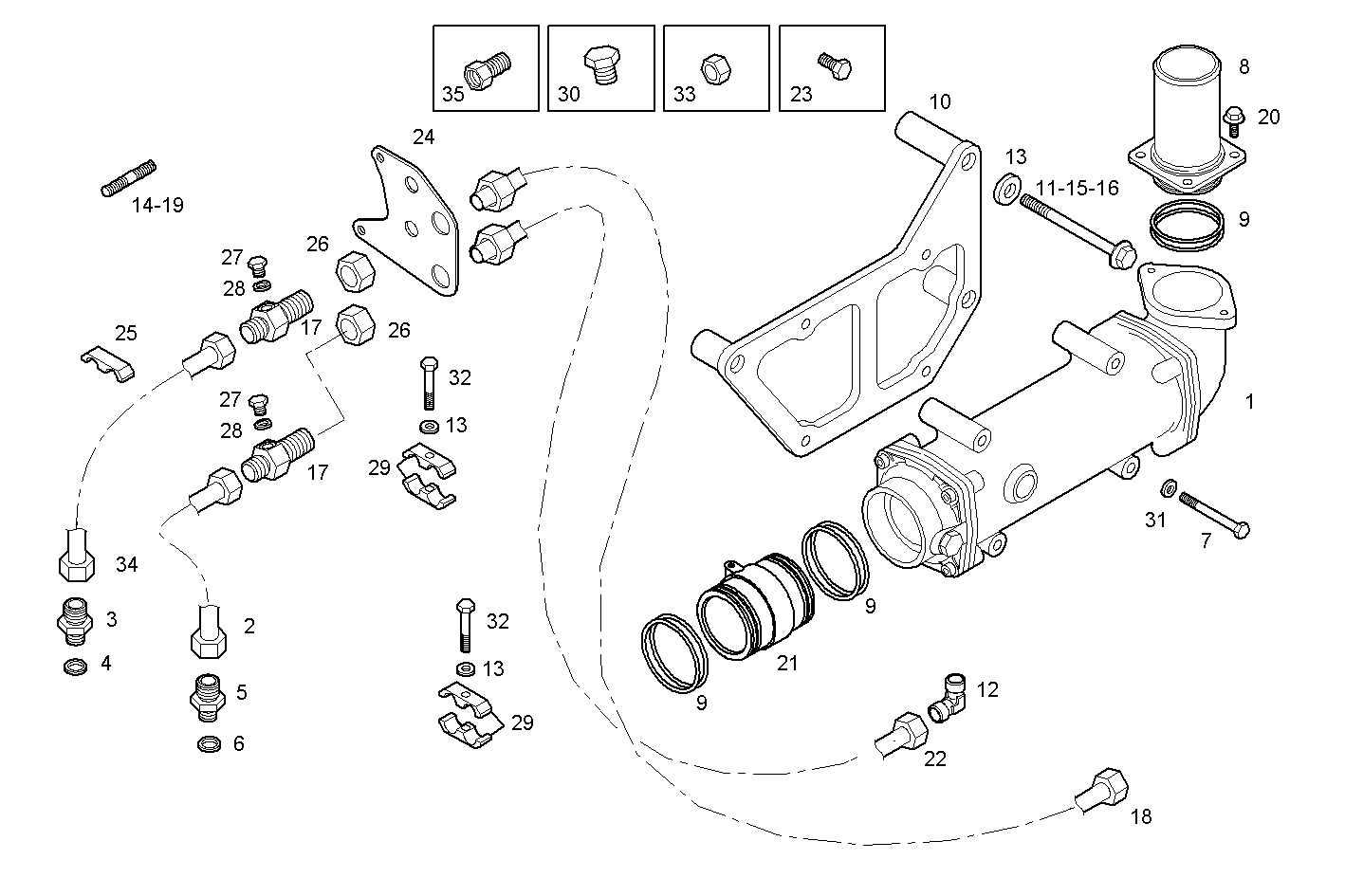

| Item |
Part number |
Description |
|
1 |
8040270 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
2 |
8006875 |
HOSE |
|
3 |
8026675 |
PIPE SOCKET |
|
4 |
16508460 |
WASHER 22x27x1,5 |
|
5 |
8026677 |
PIPE SOCKET |
|
6 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
7 |
17458134 |
SCREW M12X1,75X25 MM |
|
8 |
8039848 |
SPACING BAR |
|
9 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
10 |
8041594 |
RETAINER |
|
11 |
16586925 |
HEXAGON BOLT M8X50 MM |
|
12 |
16512119 |
ELBOW COUPLING |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
17368224 |
STUD M10X40 MM |
|
15 |
16598324 |
HEXAGON BOLT M8X100 MM |
|
16 |
16592625 |
HEXAGON BOLT M8X80 MM |
|
17 |
8111751 |
PIPE SOCKET |
|
18 |
8041590 |
OIL LINE |
|
19 |
17368624 |
STUD M10X1,5X25 MM |
|
20 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
21 |
8038043 |
SPACING BAR |
|
22 |
8041588 |
OIL LINE |
|
23 |
16607424 |
SCREW M10X16 |
|
24 |
8032349 |
RETAINER |
|
25 |
8041552 |
SUPPORT |
|
26 |
16509011 |
NUT M22X1,5X7 MM |
|
27 |
11903140 |
PLUG M10X1,25 |
|
28 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
29 |
8010505 |
CLAMP Ø16 MM |
|
30 |
16997611 |
THREADED PLUG M20X1,5 |
|
31 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
32 |
16605924 |
SCREW M8X40 MM |
|
33 |
17038921 |
NUT M16X2 |
|
34 |
8113774 |
HOSE |
|
35 |
8011519 |
PIPE SOCKET |
