Catalogue Menu
C13ENTM83.10

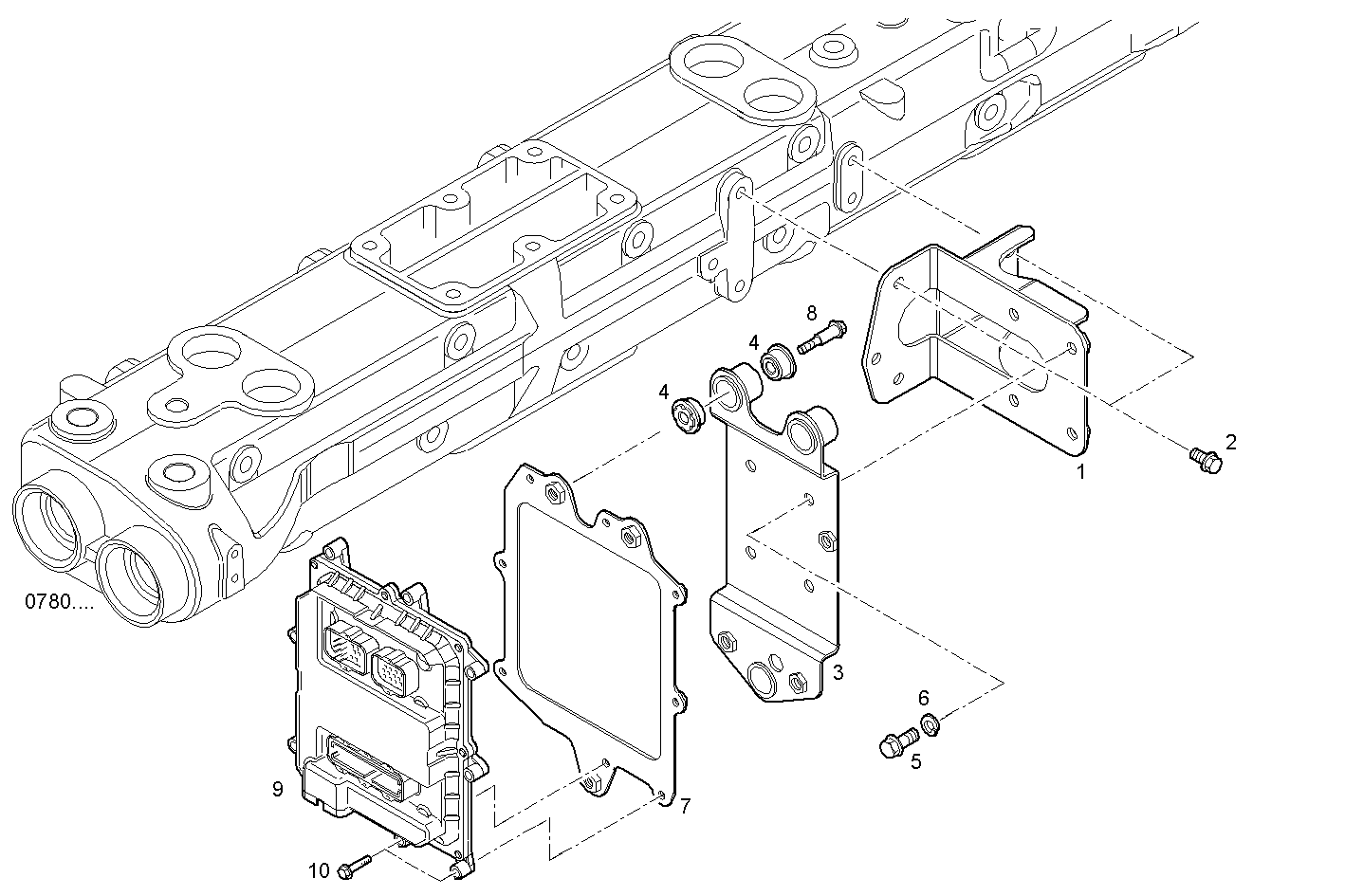

1701.023 ELECTRONIC CONTROL UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 8050051 | RETAINER |
| 2 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 3 | 8049028 | RETAINER |
| 4 | 98498817 | DOWEL |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 8048319 | RETAINER |
| 8 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 9 | 8094789 | ELECTR.CONTR.UNIT E.C.U. |
| 10 | 16586025 | HEXAGON BOLT M6X30 MM |
