C13ENTM83.10

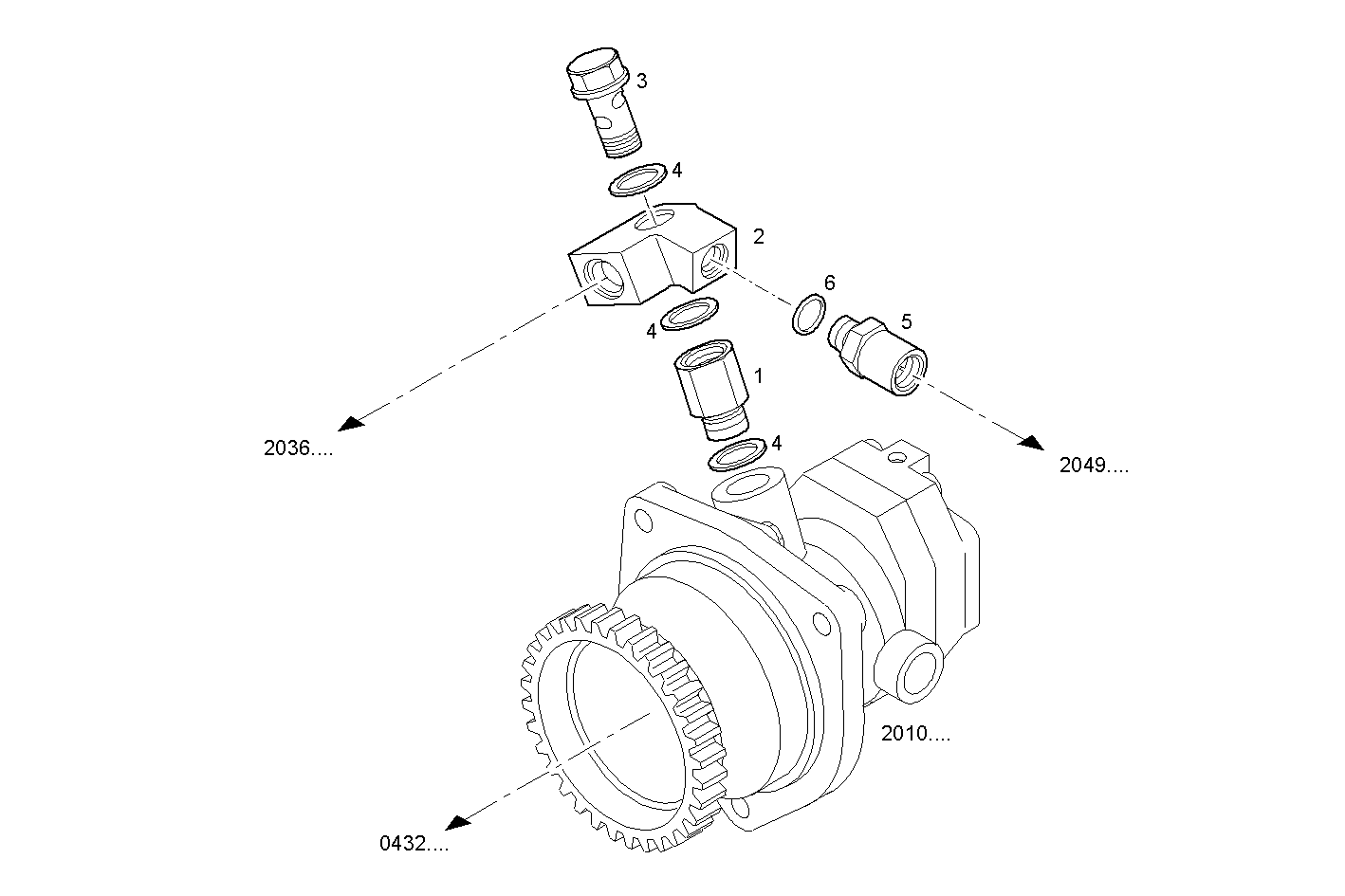

2042.009 EXCESS PRESSURE RELIEF VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 8041722 | THREADED UNION |
| 2 | 500342081 | PIPE SOCKET |
| 3 | 504202514 | SCREW CONNECTOR |
| 4 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 5 | 500328251 | VALVE 0,2-0,3 BAR |
| 6 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
