C13ENTM83.10

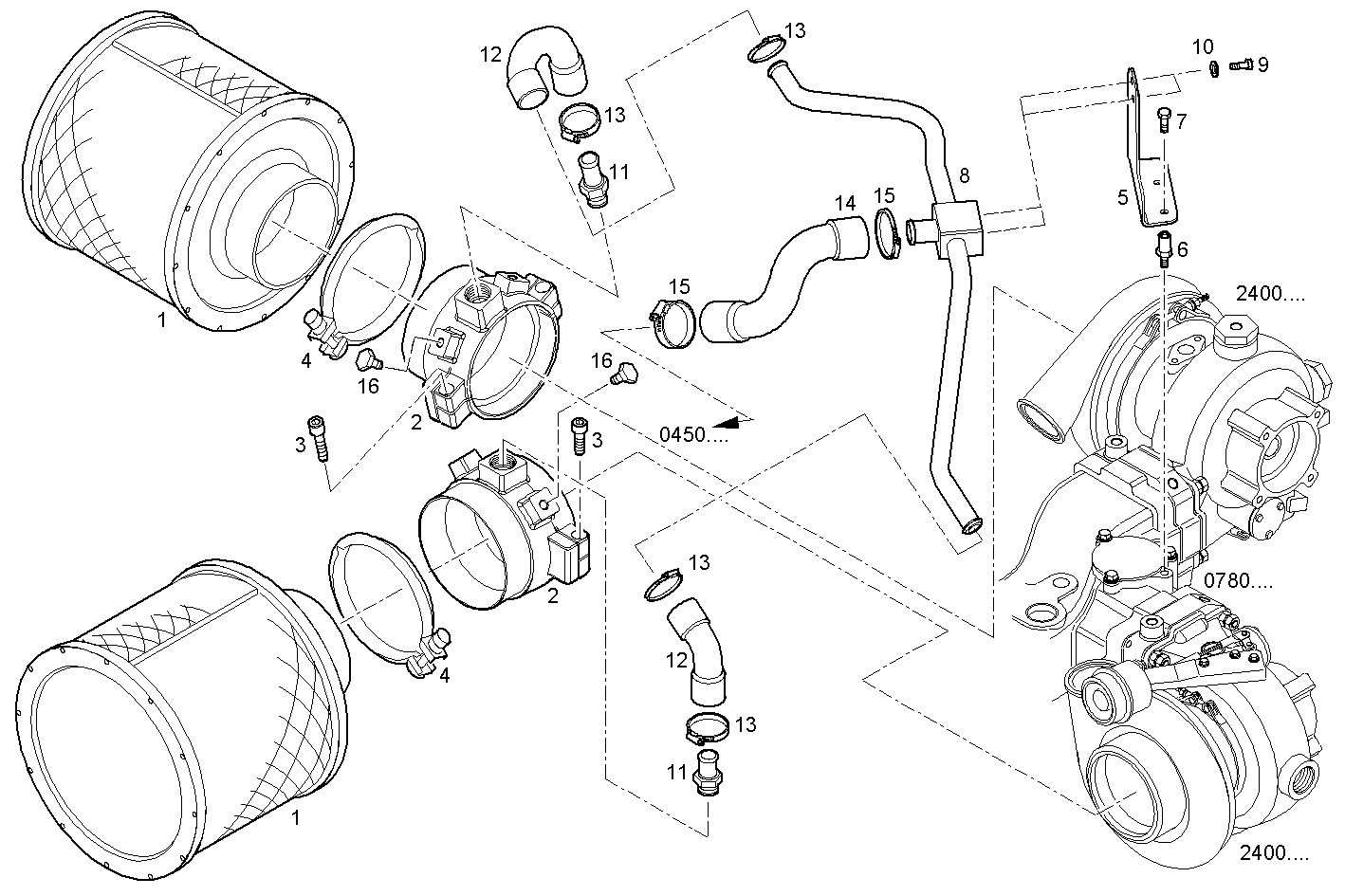

2210.003 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8048076 | AIR CLEANER |
| 2 | 8048214 | FILTER SUPPORT |
| 3 | 16689325 | CYLIND-HEAD SCREW M6X25 |
| 4 | 17765494 | CLIP dia. = 100/120 |
| 5 | 8047551 | RETAINER |
| 6 | 8033833 | SPACING BAR M8 |
| 7 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 8 | 8048187 | BREATHER PIPE |
| 9 | 16609725 | HEXAGON BOLT M6X14 MM |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 4633506 | THREADED UNION M22X1,5 |
| 12 | 8044073 | RUBBER SLEEVE |
| 13 | 18088493 | CLIP |
| 14 | 8044335 | RUBBER SLEEVE |
| 15 | 17764693 | CLIP Ø25/40 MM |
| 16 | 8034352 | PLUG |
