C13ENTM83.10

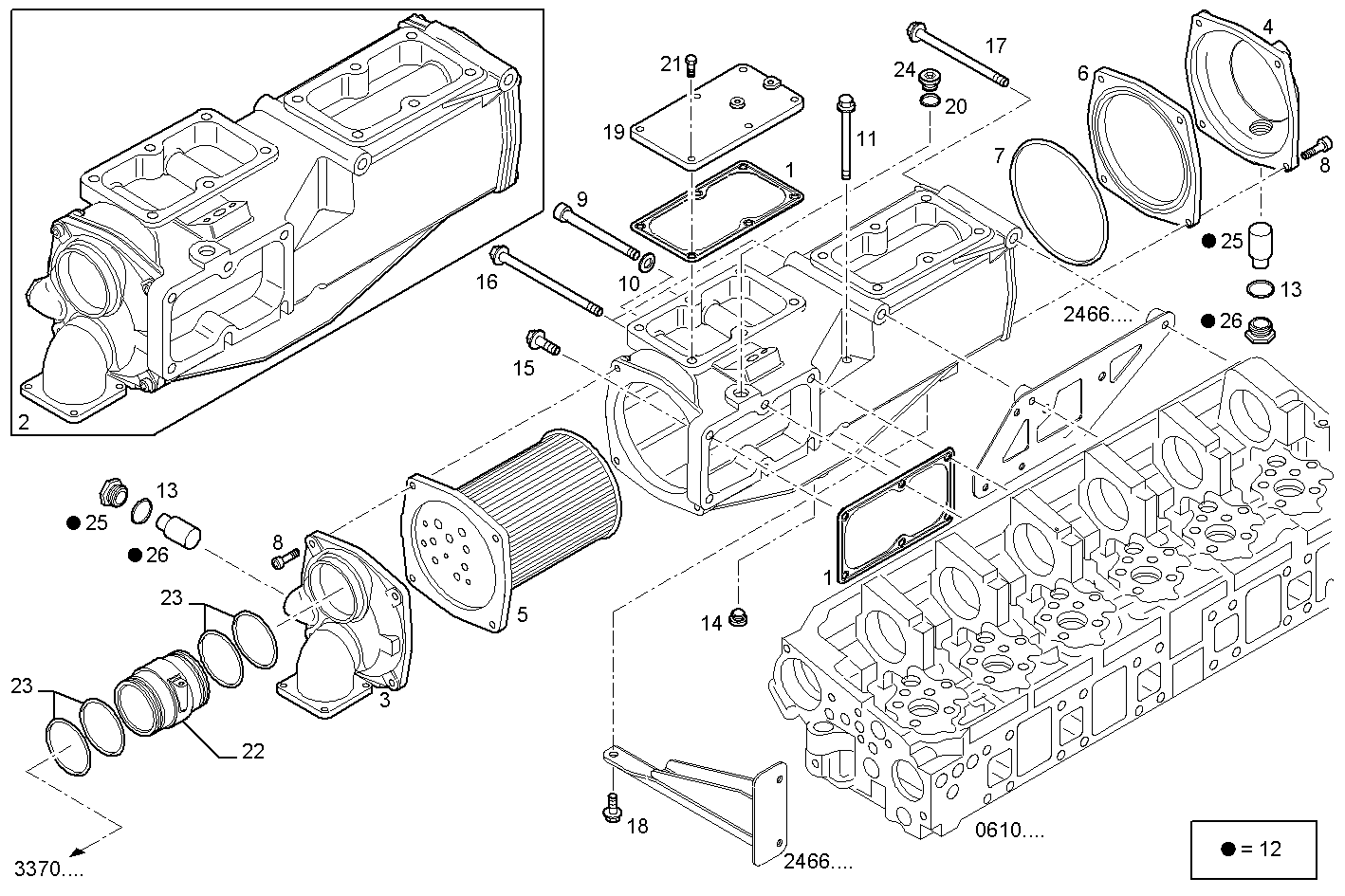

2460.001 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 504026624 FLAT ENGINE GASKET
2 8036971 AIR/WATER HEAT EXCHANGER ASSY
3 8041084 HEAT EXCHANG.COVER
4 8041085 HEAT EXCHANG.COVER
5 8041086 TUBE STACK
6 8041087 SPACING BAR
7 8041088 O-RING
8 16690924 CYLIND-HEAD SCREW M8X40 MM
9 8041089 SCREW
10 8041090 WASHER
11 8041091 SCREW
12 8033236 PLUG ASSY
13 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
14 16992115 THREADED PLUG M10X1
15 16587325 HEXAGON BOLT M10X35 MM
16 8037478 HEXAGON BOLT
17 16599325 HEXAGON BOLT M10X150
18 18139424 HEXAGON BOLT M10X20 MM
19 8034337 COVER
20 99489019 WASHER Ø16X24 MM SP=1,5 MM
21 16673635 HEXAGON BOLT M8X1.25X20
22 8038043 SPACING BAR
23 17290481 O-RING 3,53x69,44 [UP TO # 328594]
24 16992415 THREADED PLUG M16X1,5
25 8093596 PLUG
26 8093597 SACRIFICAL ANODE
