C13ENTM83.10

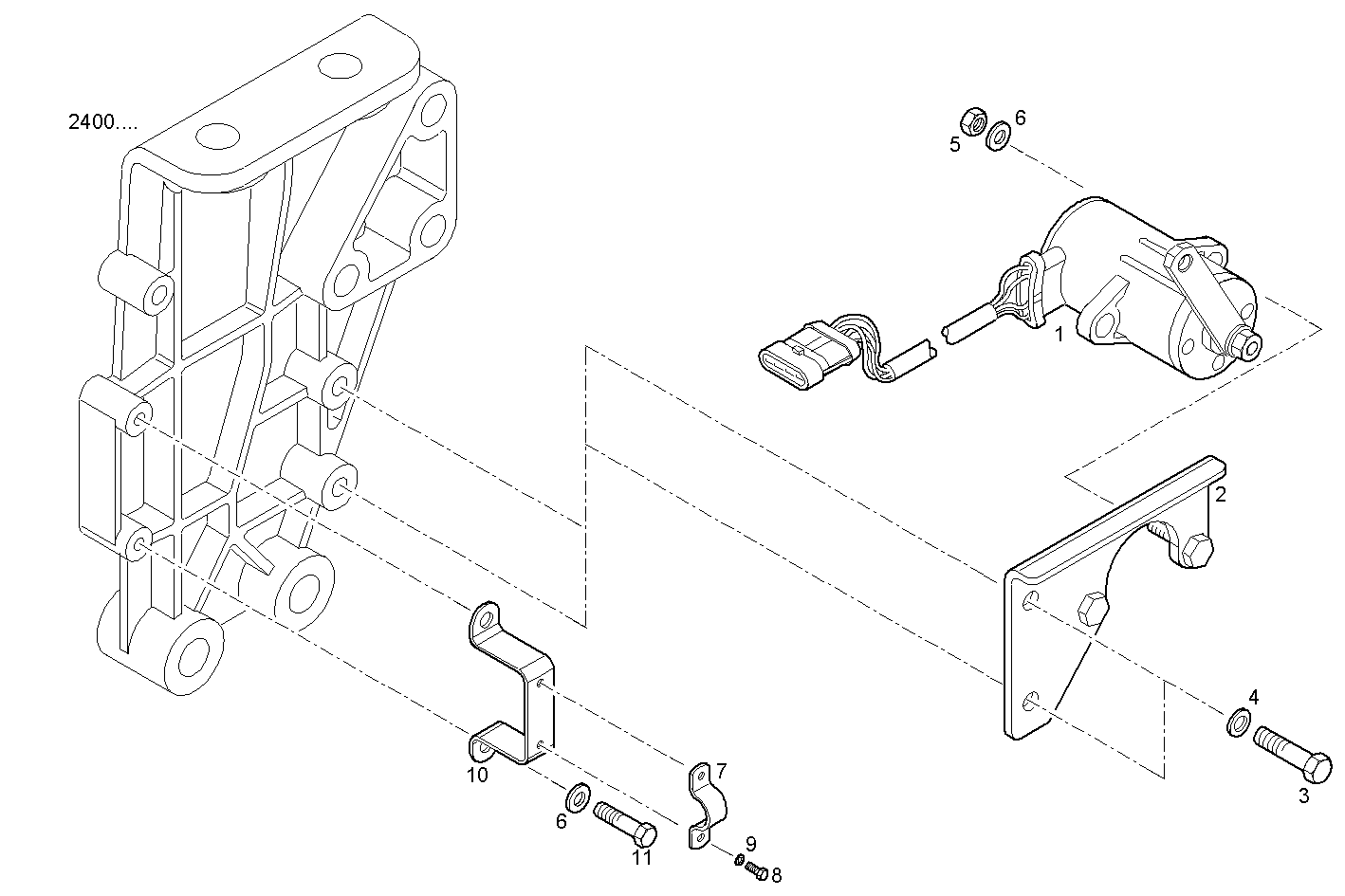

2650.009 ELECTRONIC ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8030707 | POTENTIOMETER |
| 2 | 8047968 | RETAINER |
| 3 | 16605424 | SCREW M8X16 MM (8.8) |
| 4 | 17088374 | WASHER |
| 5 | 17787270 | HEXAGON NUT M6 |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 8033783 | RETAINER |
| 8 | 16601924 | HEXAGON BOLT M5X10 MM |
| 9 | 17800274 | SPRING WASHER Ø5X11 MM |
| 10 | 8048170 | RETAINER |
| 11 | 16603525 | SCREW M6X12 MM |
