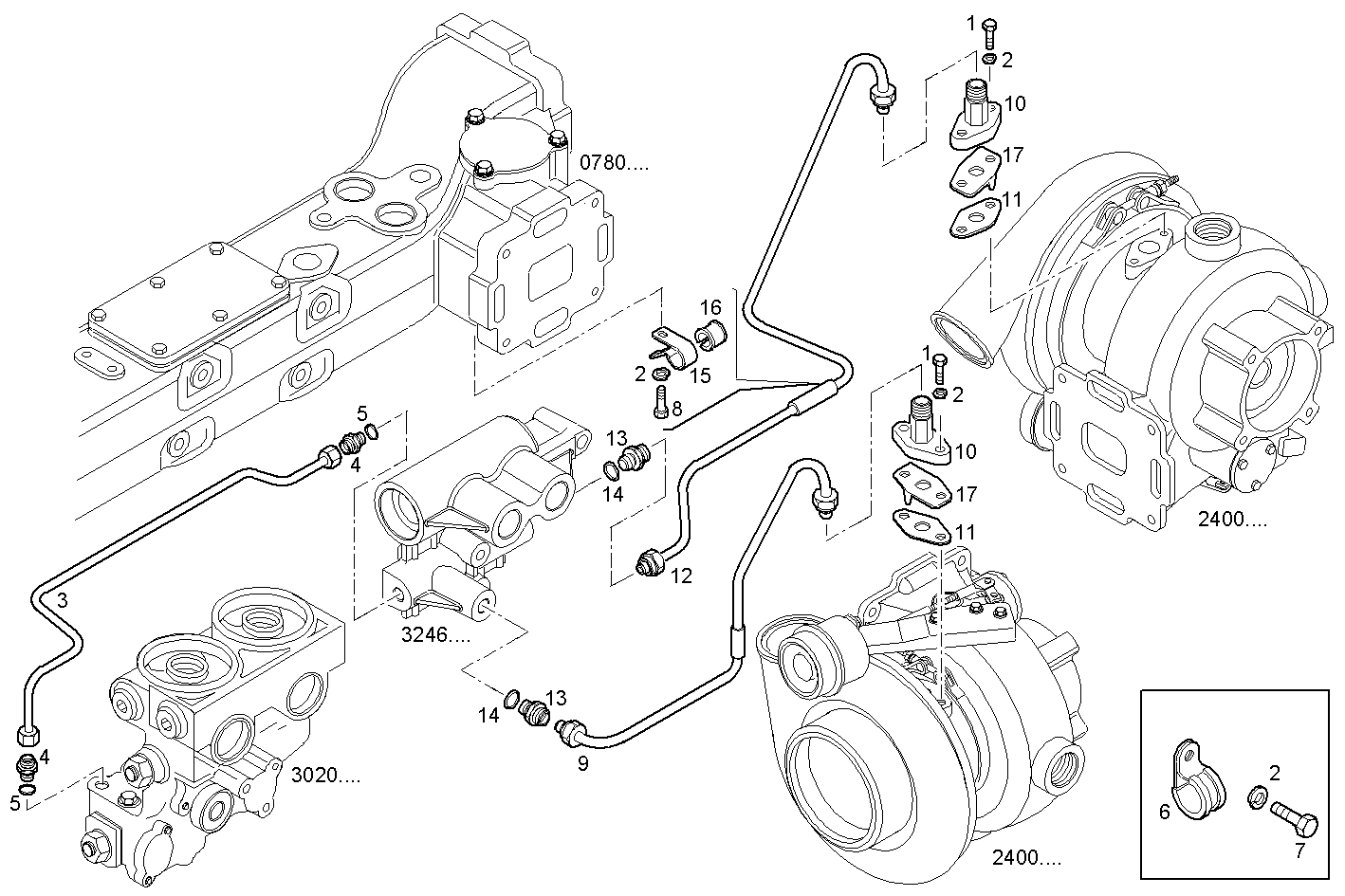

Item |
Part number |
Description |
1 |
16605524 |
HEXAGON BOLT M8X20 MM |
2 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
3 |
8049007 |
OIL LINE |
4 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
5 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
6 |
17316592 |
PIPE CLIP |
7 |
16605424 |
SCREW M8X16 MM (8.8) |
8 |
16605534 |
HEXAGON BOLT M8X20 MM (10.9) |
9 |
8048395 |
OIL LINE |
10 |
8047428 |
FLANGE |
11 |
98415922 |
FLAT ENGINE GASKET |
12 |
8048384 |
OIL LINE |
13 |
16500215 |
THREADED UNION M14X1,5/M16X1,5 |
14 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
15 |
4755963 |
FASTENING BRACKET |
16 |
4755964 |
RUBBER PAD |
17 |
98482093 |
GASKET |
