C13ENTM83.10

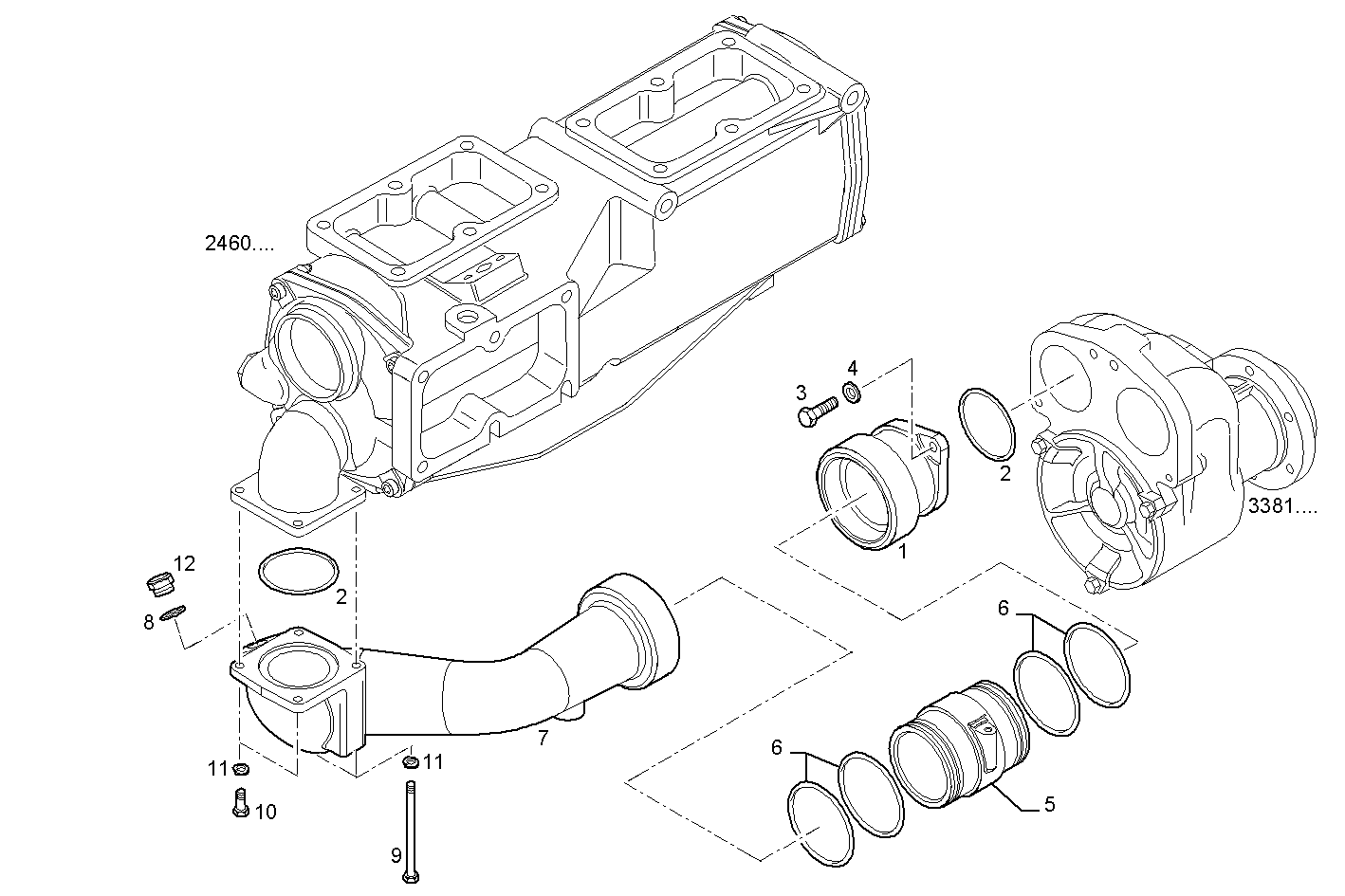

3390.010 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8038208 | SPACING BAR |
| 2 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 3 | 16605625 | HEXAGON BOLT M8X25 |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8038043 | SPACING BAR |
| 7 | 8038156 | SEA WATER PIPE |
| 8 | 16508460 | WASHER 22x27x1,5 |
| 9 | 16045424 | SCREW M8X110 MM |
| 12 | 16992640 | PLUG M22X1,5 |
