C13ENTM83.10

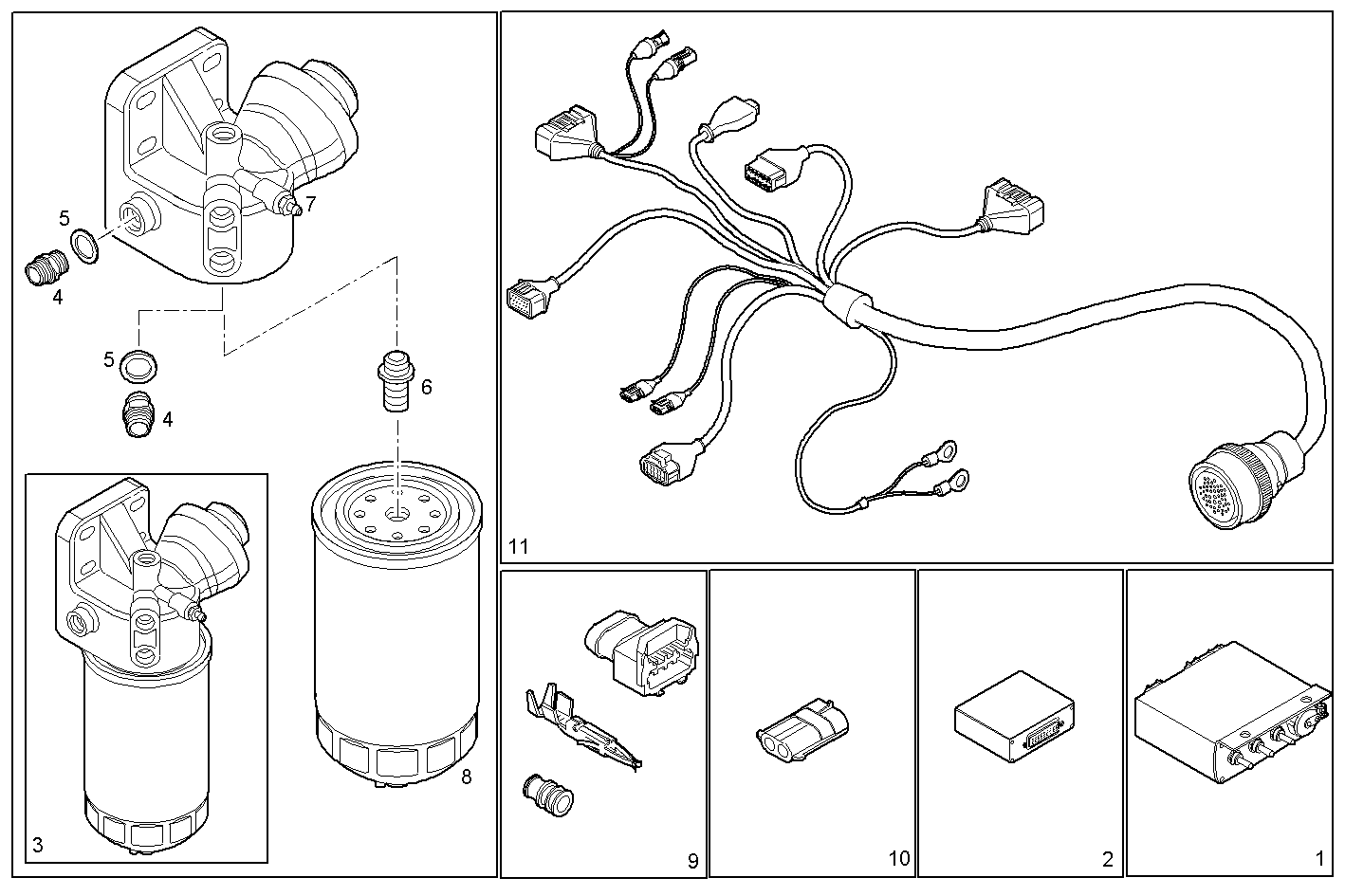

8600.312 ACCESSORIES [FROM 1/03/08] [FROM 1/03/08]

Iveco/FPT ACCESSORIES

Item Part number Description
1 8042040 SWITCH PANEL relais module 24V
2 8051505 SWITCHGEAR converter module
3 504057743 PREFILTER ASSY
4 16500215 THREADED UNION M14X1,5/M16X1,5
5 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
6 42545574 THREADED UNION
7 42545573 FUEL FILT.SUPPORT
8 2992662 FUEL FILTER ELEM.
9 8030575 CONNECTION ASSY
10 8033199 CONNECTION ASSY
11 8049255 ENGINE HARNESS
