C13ENTM83.10

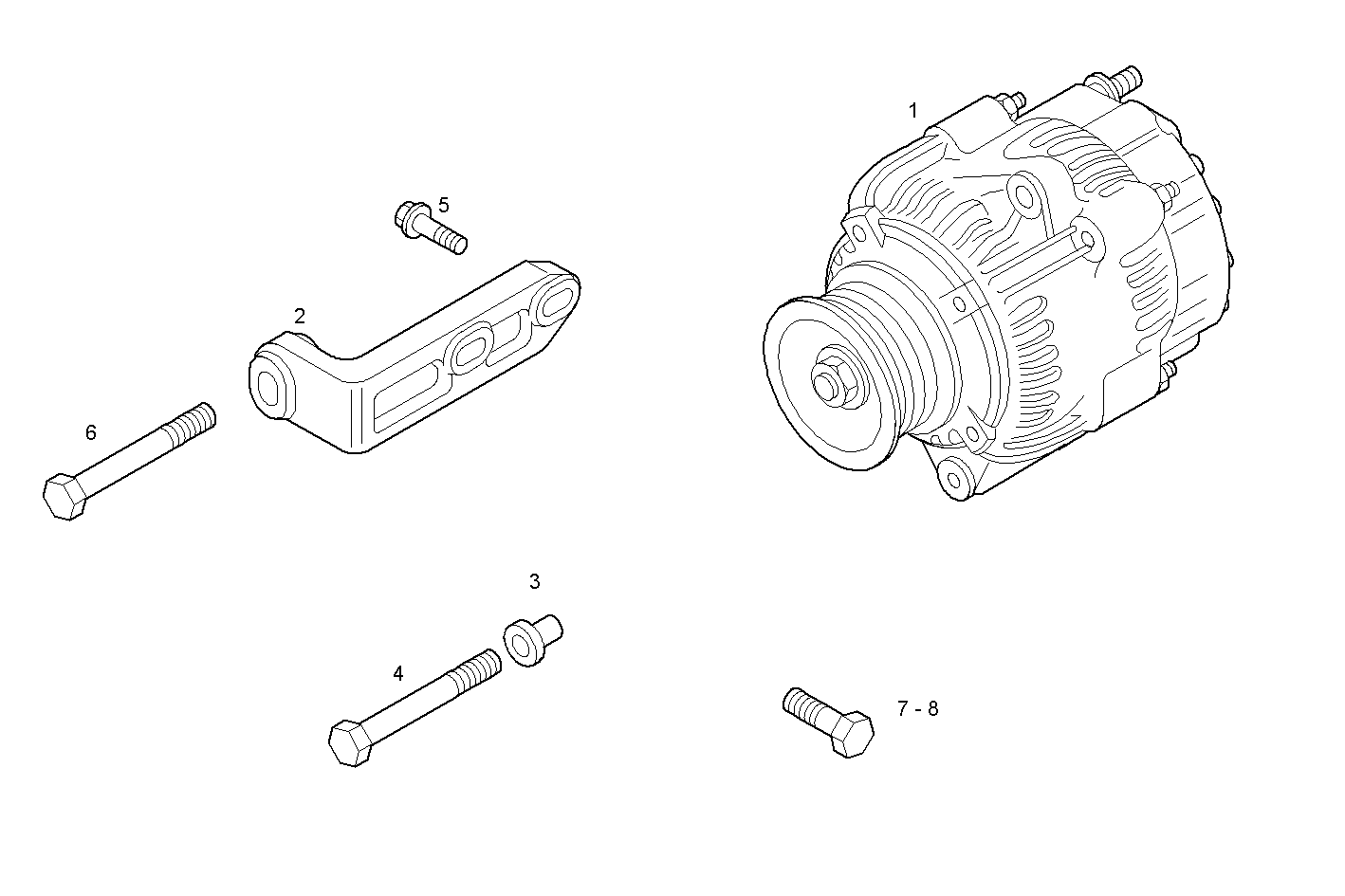

A14200502 ALTERNATOR - poles system
Item | Part number | Description |
---|---|---|
1 | 8040072 | ALTERNATOR |
2 | 99458521 | FASTENING BRACKET |
3 | 99484032 | SPACER BUSH |
4 | 99474161 | SCREW M10 |
5 | 16673835 | HEXAGON BOLT M8X30 MM |
6 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
7 | 16587425 | HEXAGON BOLT M10X40 MM |
8 | 16586625 | HEXAGON BOLT M8X35 MM |
