C13ENTM83.10

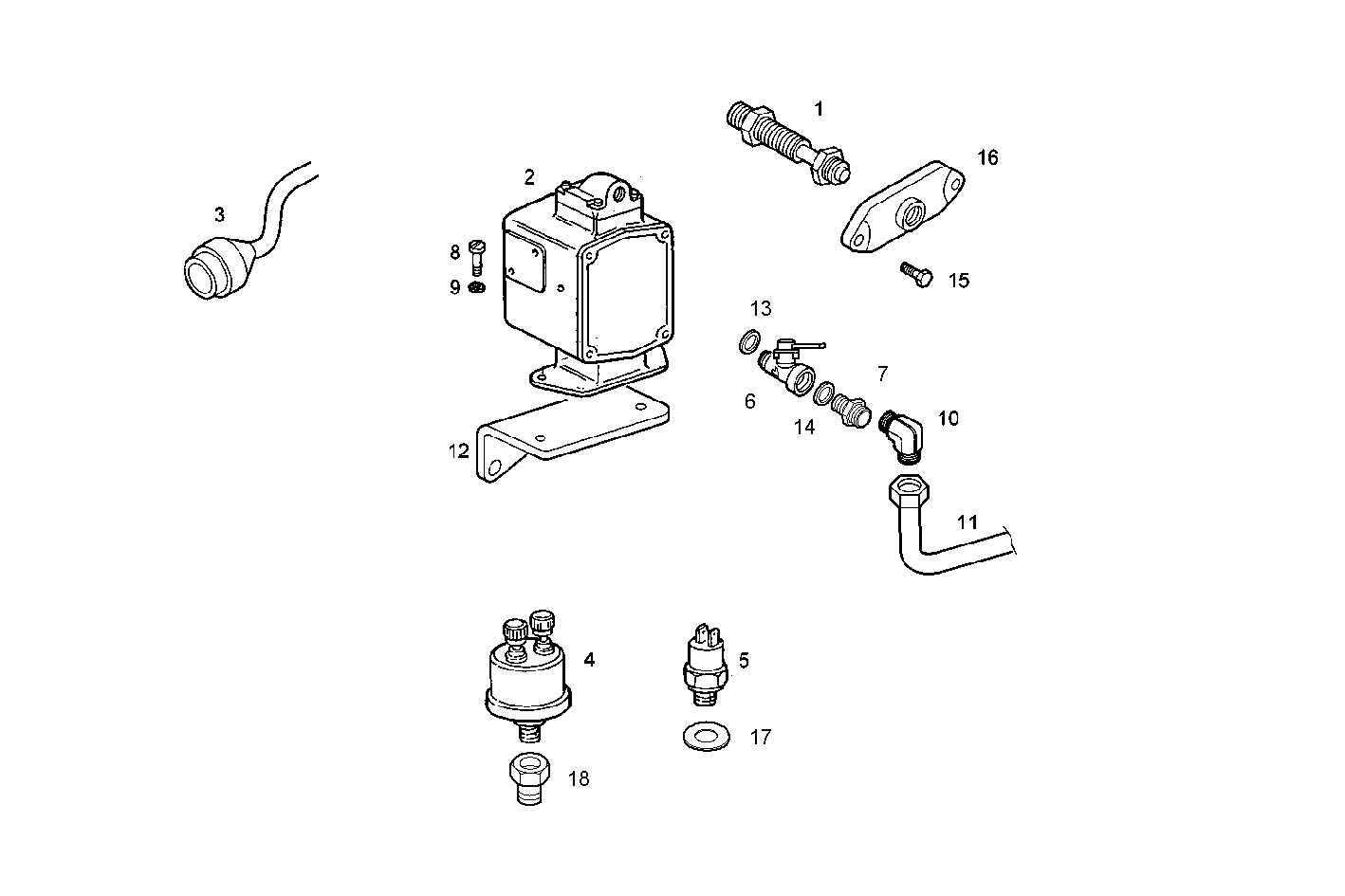

A16030510 SENDERS - R.I.NA

Iveco/FPT SENDERS

Item Part number Description
1 8018673 PICK-UP
2 8110741 TRANSMITTER TBPO
3 8034358 EXTENSION
4 8100417 TRANSMITTER TPO
5 8037368 TRANSMITTER
6 8037665 RETAINER COCK
7 8033816 THREADED UNION
8 16603525 SCREW M6X12 MM
9 17088474 WASHER Ø6X12 MM
10 8033819 ELBOW COUPLING
11 8036827 CONNECTION PIPE
12 8033476 RETAINER
13 99489016 SEAL GASKET Ø10X17 MM SP =1,5
14 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
15 16597925 HEXAGON BOLT M8X14 MM
16 8033812 PLATE
17 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
18 8032383 PIPE SOCKET M14X1,5
