C13ENTM83.10

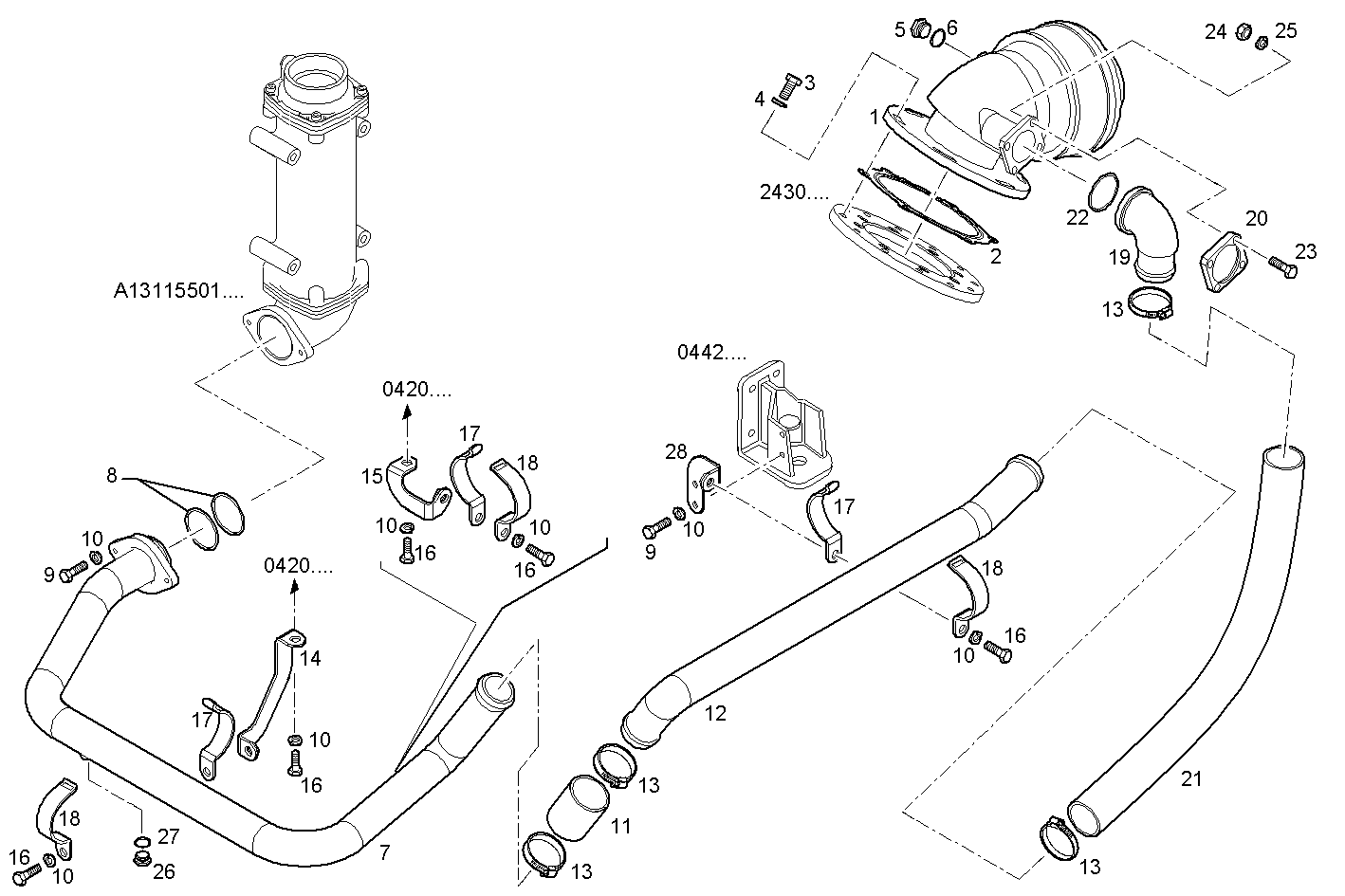

A40050526 GAS-WATER MIXER

Iveco/FPT GAS-WATER MIXER

Item Part number Description
1 8048739 EXHAUST COOL. ELBOW
2 8048655 FLAT ENGINE GASKET
3 16607824 HEXAGON BOLT M10X35 MM (8.8)
4 17090174 SPRING WASHER Ø10X20 MM
5 16992240 THREADED PLUG M12X1,5
6 98474306 WASHER Ø12X20 MM SP=1,9 MM
7 8049658 WATER PIPE
8 17290481 O-RING 3,53x69,44 [UP TO # 328594]
9 16605625 HEXAGON BOLT M8X25
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 98421391 RUBBER SLEEVE [UP TO 30-11-07]
12 8049664 WATER PIPE
13 17765093 CLIP Ø60/80 MM
14 8042249 FASTENING BRACKET
15 8042153 FASTENING BRACKET
16 16605524 HEXAGON BOLT M8X20 MM
17 8017811 CLAMP
18 8017810 CLAMP
19 8111431 WATER PIPE INLET
20 8111433 FLANGE
21 8049672 HOSE
22 17290281 O-RING Ø63,09 MM SP=3,53 MM
23 16587325 HEXAGON BOLT M10X35 MM
24 17038131 HEXAGON NUT M10
26 16992140 PLUG M10X1
27 99489016 SEAL GASKET Ø10X17 MM SP =1,5
28 8049649 RETAINER
