C13ENTM83.10

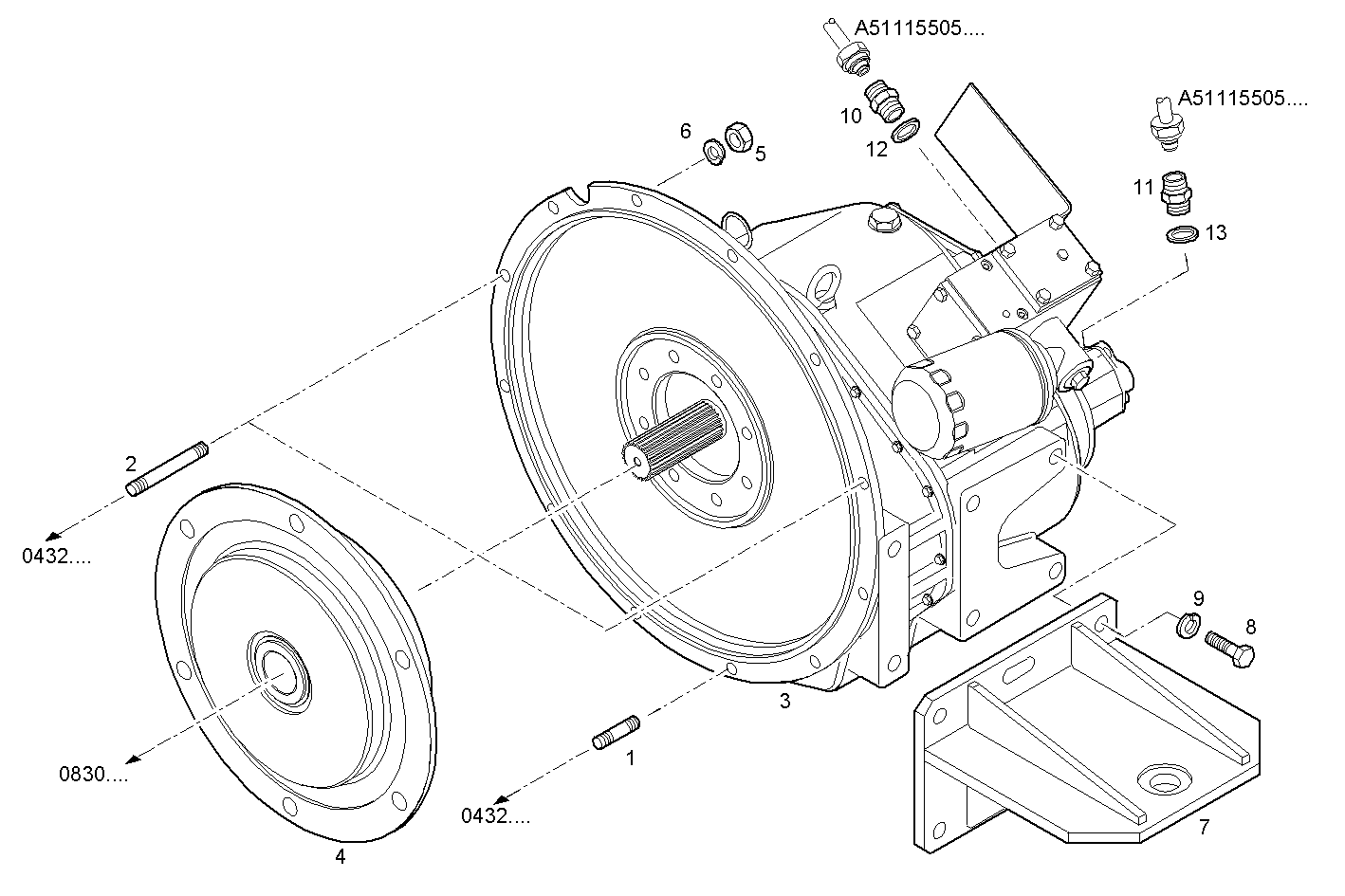

A51115505/03 MARINE GEAR ZF 325-1A - ratio 1:1.216
| Item | Part number | Description |
|---|---|---|
| 1 | 17368225 | STUD |
| 2 | 17368624 | STUD M10X1,5X25 MM |
| 3 | 8041619 | MARINE GEAR |
| 4 | 8031844 | FLEXIBLE COUPLING |
| 5 | 17038121 | HEXAGON NUT M10 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8038088 | SUPPORT |
| 8 | 16614524 | HEXAGON BOLT M16X35 MM |
| 9 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 10 | 8026677 | PIPE SOCKET |
| 11 | 8026675 | PIPE SOCKET |
| 12 | 11271460 | GASKET Ø21X26X1,5 MM |
| 13 | 10263460 | WASHER Ø22X28X1,5 MM |
