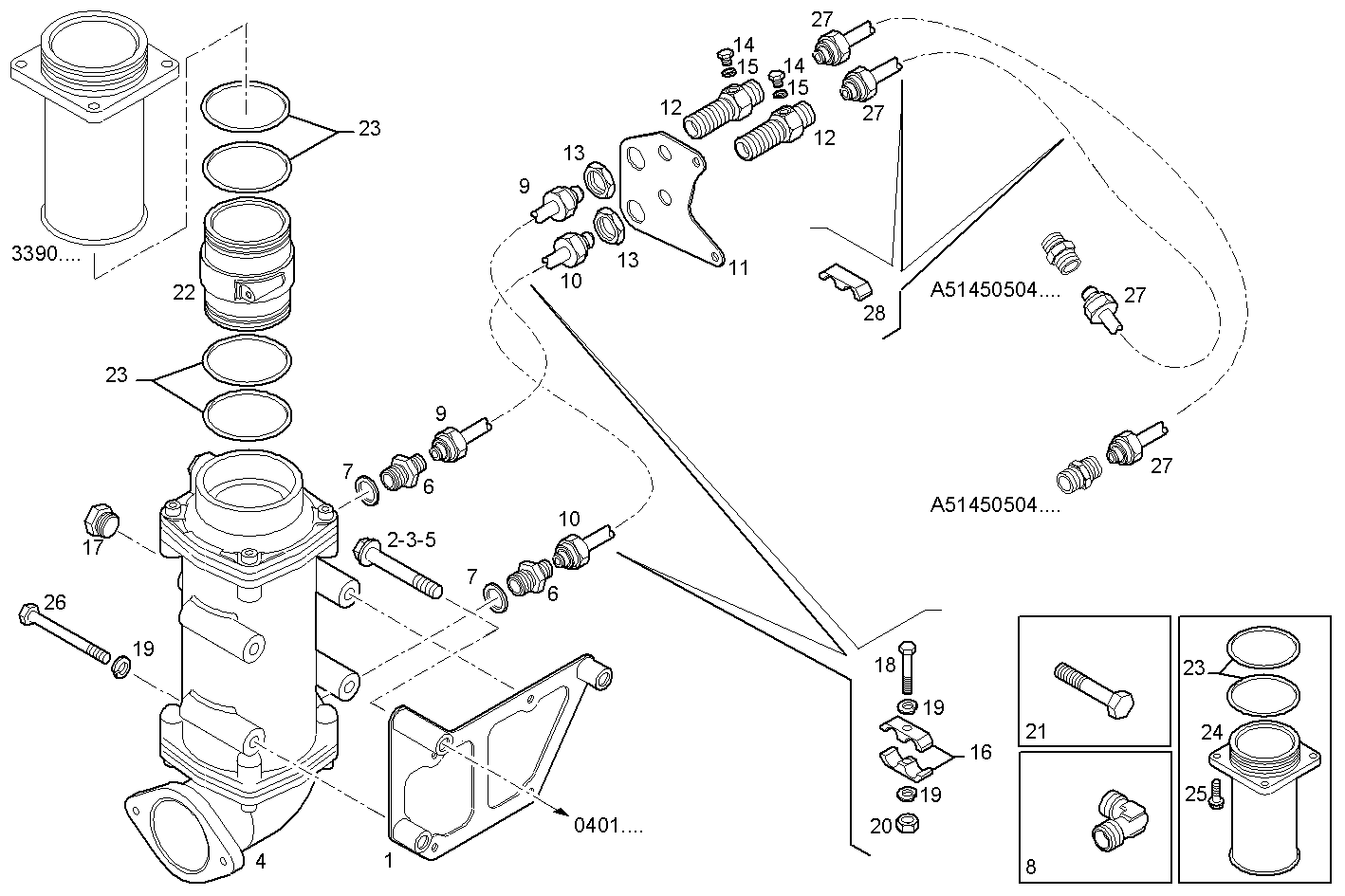

Item |
Part number |
Description |
1 |
8041552 |
SUPPORT |
2 |
16586925 |
HEXAGON BOLT M8X50 MM |
3 |
16592625 |
HEXAGON BOLT M8X80 MM |
4 |
8040270 |
MARINE GEAR OIL HEAT EXCH ASSY |
5 |
16598325 |
HEXAGON BOLT M8X100 MM |
6 |
8011519 |
PIPE SOCKET |
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
8 |
16512119 |
ELBOW COUPLING |
9 |
8041588 |
OIL LINE |
10 |
8041590 |
OIL LINE |
11 |
8032349 |
RETAINER |
12 |
8111751 |
PIPE SOCKET |
13 |
41217235 |
HEXAGON NUT M22X1,5 |
14 |
11903140 |
PLUG M10X1,25 |
15 |
4858606 |
GASKET Ø10X14X1 MM |
16 |
8010505 |
CLAMP Ø16 MM |
17 |
16997611 |
THREADED PLUG M20X1,5 |
18 |
16605924 |
SCREW M8X40 MM |
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
20 |
17037921 |
HEXAGON NUT M8X1,25 |
21 |
16607434 |
HEXAGON BOLT M10X16 MM |
22 |
8038043 |
SPACING BAR |
23 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
24 |
8039848 |
SPACING BAR |
25 |
16605625 |
HEXAGON BOLT M8X25 |
26 |
17458234 |
LOCKING SCREW M12X30 MM |
27 |
8006875 |
HOSE |
28 |
8041594 |
RETAINER |
