C13ENTX20.00A005

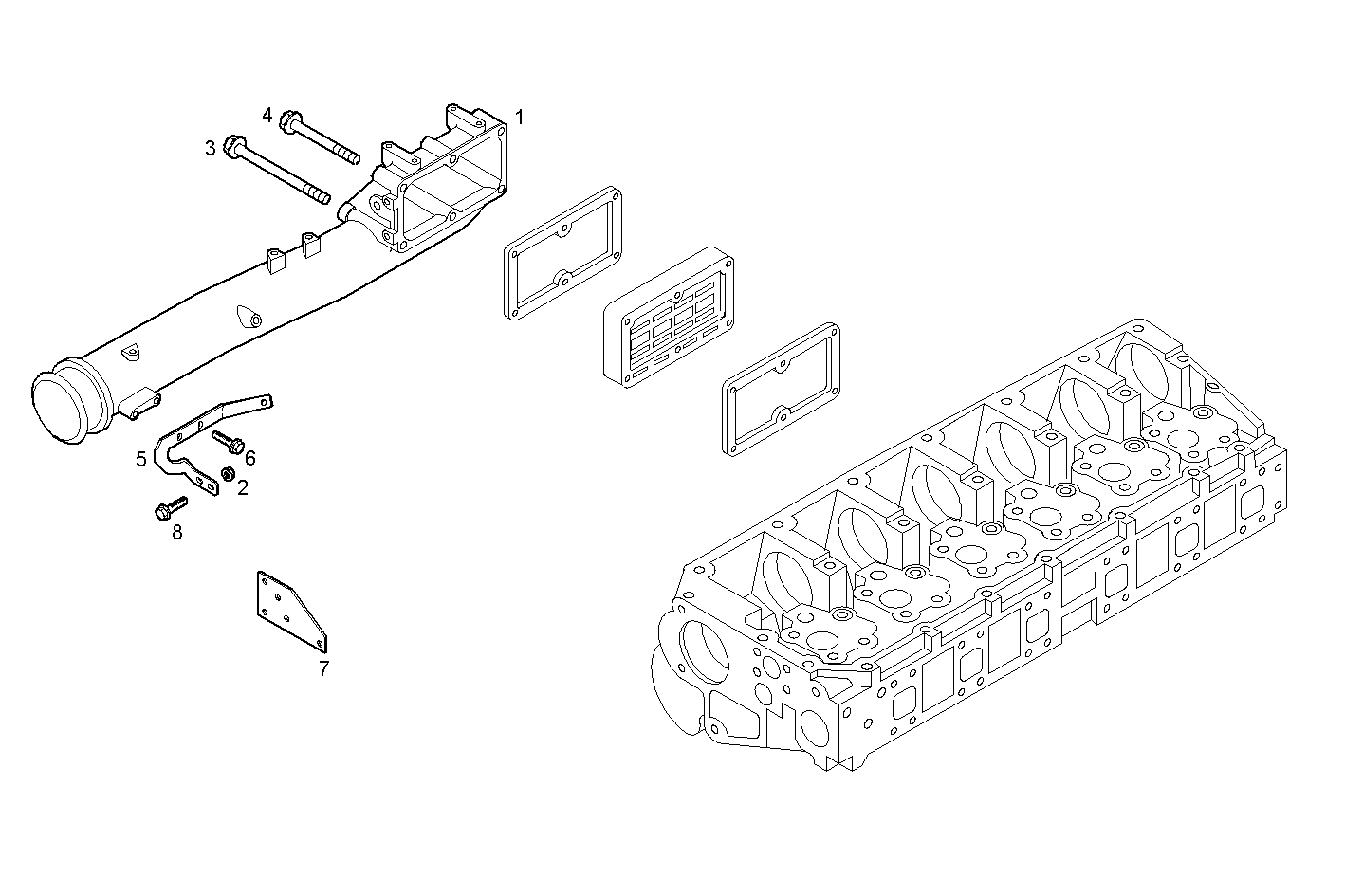

0710.240 INTAKE MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 504074694 | SUCTION LINE |
2 | 17152821 | NUT M8 [up to 555939] |
3 | 16599324 | HEXAGON BOLT M10X150 MM |
4 | 16593125 | HEXAGON BOLT M10X100 MM |
5 | 41218294 | FASTENING BRACKET |
6 | 16673535 | HEXAGON BOLT M8X16 MM |
7 | 504011415 | SUPPORT |
8 | 16673835 | HEXAGON BOLT M8X30 MM |
