C13ENTX20.00A800

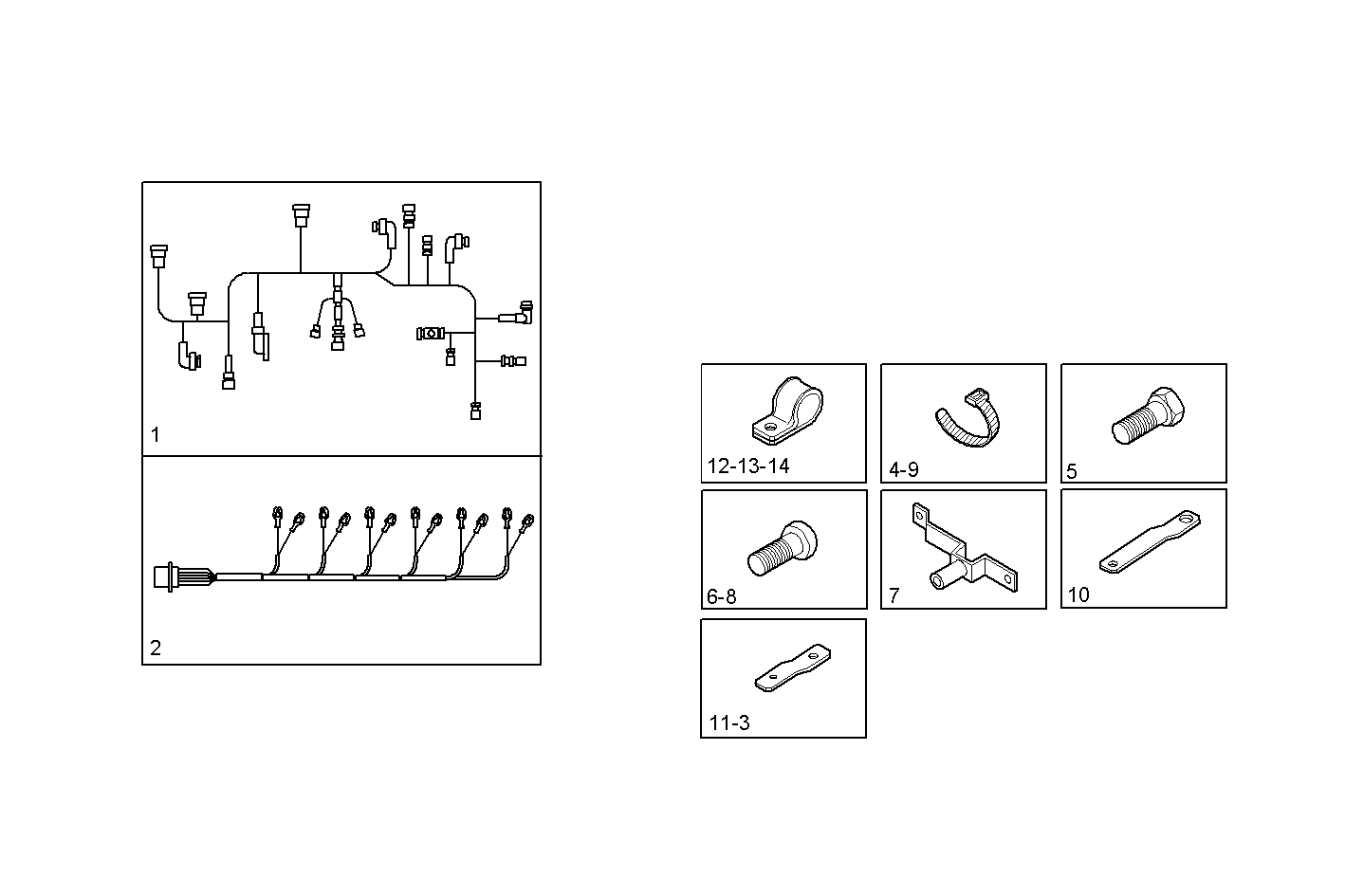

1730.028 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 504116158 | ENGINE HARNESS |
2 | 504149937 | WIRE/CABLE |
3 | 504067009 | RETAINER |
4 | 504023286 | CABLE STRAP |
5 | 16592225 | HEXAGON BOLT M8X55 MM |
6 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
7 | 500371778 | FASTENING BRACKET |
8 | 11612224 | HEXAGON BOLT M6X12 MM |
9 | 504099833 | CABLE STRAP |
10 | 504060889 | RETAINER |
11 | 504049754 | FASTENING BRACKET |
12 | 17310001 | FASTENING BRACKET Ø4 MM |
13 | 17310401 | FASTENING BRACKET Ø8 MM |
14 | 17310501 | FASTENING BRACKET Ø10 MM |
