C13ENTX20.00A801

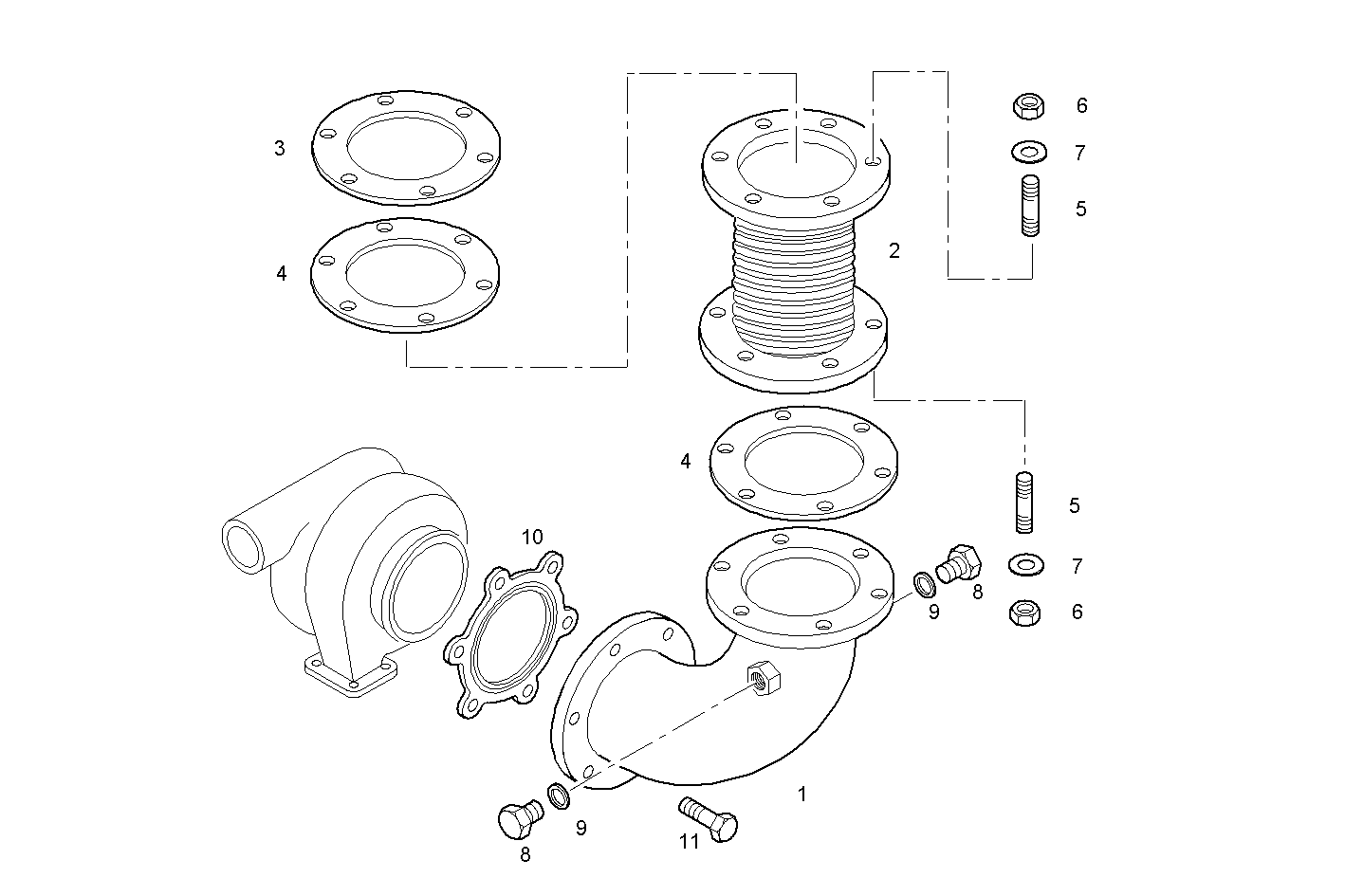

A40030516 EXHAUST PIPE
Item | Part number | Description |
---|---|---|
1 | 8044164 | EXHAUST ELBOW |
2 | 8024880 | EXHAUST BELLOWS |
3 | 8103591 | FLANGE |
4 | 8009600 | GASKET |
5 | 16731234 | STUD M10X1,5X25 |
6 | 17038131 | HEXAGON NUT M10 |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 16992211 | THREADED PLUG M12X1,5 |
9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
10 | 500387050 | GASKET |
11 | 99450660 | HEXAGON BOLT [UP TO # 17841] |
