C13ENTX20.00A802

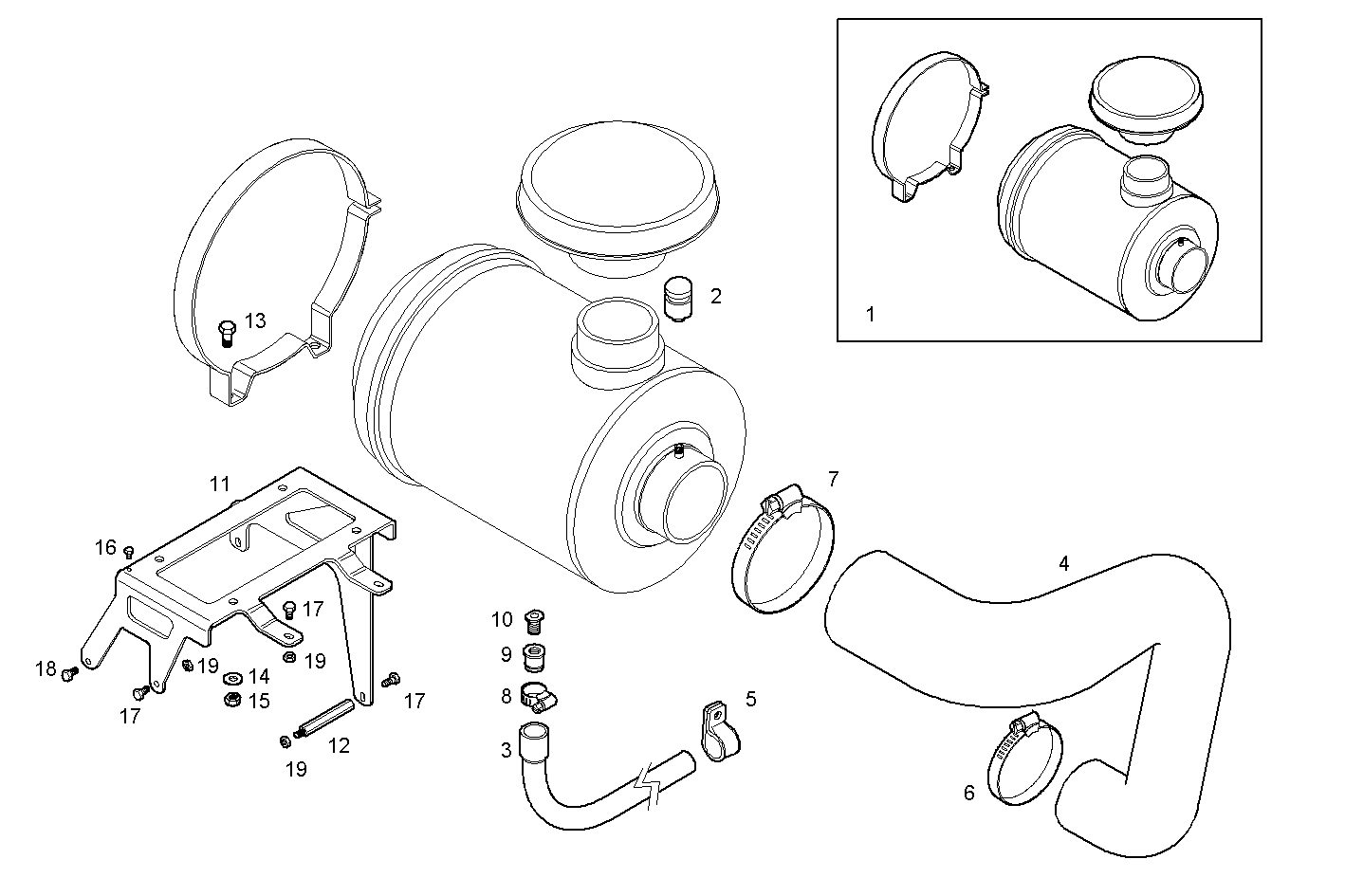

A21210534 AIR CLEANER - metallic body

Iveco/FPT AIR CLEANER

Item Part number Description
1 8037875 AIR CLEANER ASSY
2 8027294 CHOCKED FILTER INDIC. MECHANICAL
3 8042013 RUBBER SLEEVE
4 8044654 FILTER HOSE
5 17311301 FASTENING BRACKET
6 17765591 CLIP Ø110/130 MM
7 17766393 CLIP
8 17764694 CLIP Ø25/40 MM
9 8015133 PIPE SOCKET
10 8015315 PIPE SOCKET
11 8041909 FILTER SUPPORT
12 8041916 SPACING BAR
13 16609924 HEXAGON BOLT M12X30 MM (8.8)
14 17091074 WASHER Ø12X24X2,8 MM
15 17038425 HEXAGON NUT M12 (8)
16 16603425 HEXAGON BOLT M6X10
17 16605424 SCREW M8X16 MM (8.8)
18 16605624 HEXAGON BOLT M8X25 MM (8.8)
19 17037921 HEXAGON NUT M8X1,25
