C13ENTX60.00

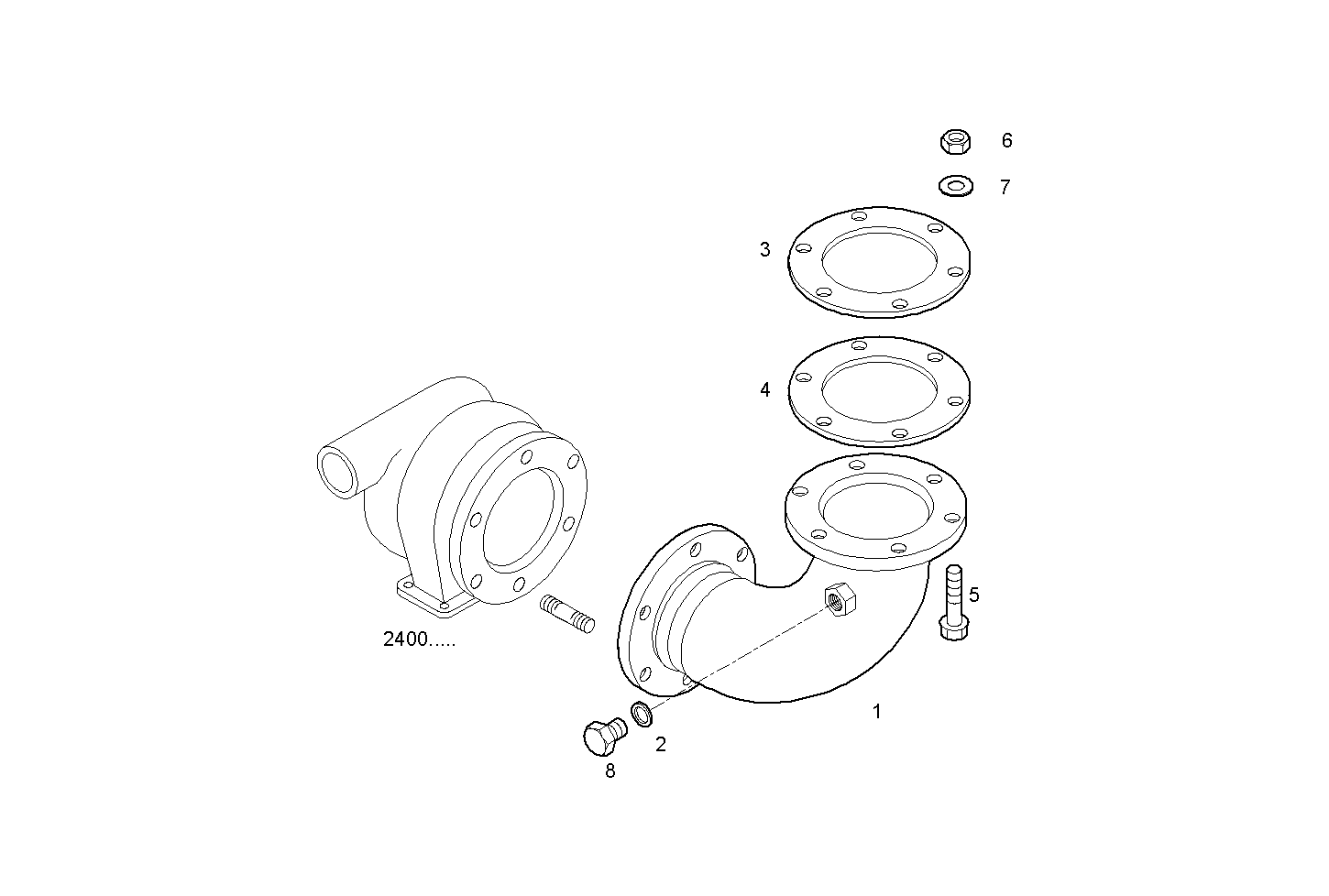

A40000507 EXHAUST PIPE
Item | Part number | Description |
---|---|---|
1 | 8044164 | EXHAUST ELBOW |
2 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
3 | 8103591 | FLANGE |
4 | 8009600 | GASKET |
5 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
6 | 17038131 | HEXAGON NUT M10 |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 16992211 | THREADED PLUG M12X1,5 |
