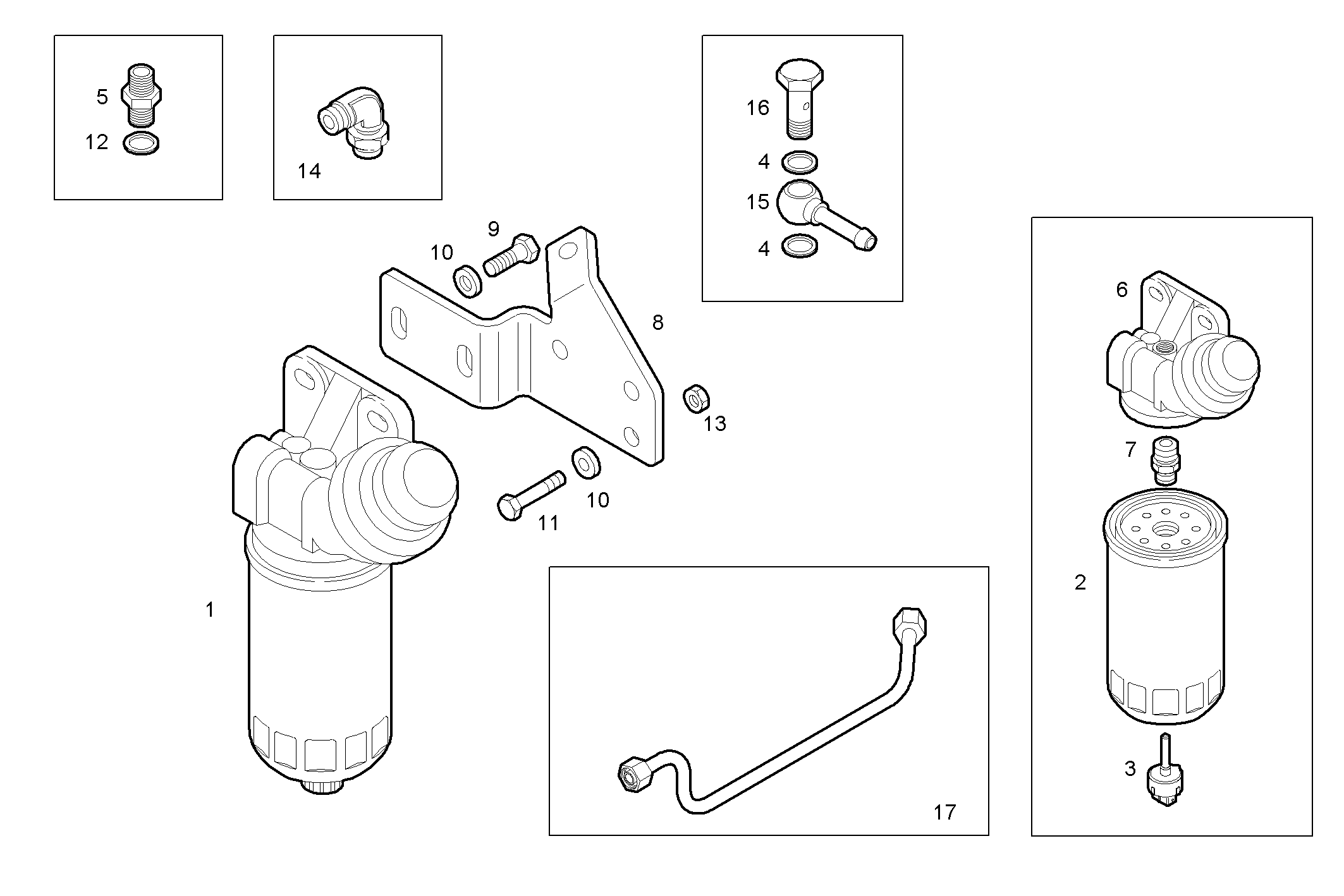

| Item |
Part number |
Description |
|
1 |
504057743 |
PREFILTER ASSY |
|
2 |
2992662 |
FUEL FILTER ELEM. |
|
3 |
42540203 |
SENSOR WATER |
|
4 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
5 |
8014143 |
PIPE SOCKET M14X1,5 |
|
6 |
42545573 |
FUEL FILT.SUPPORT |
|
7 |
42545574 |
THREADED UNION |
|
8 |
8040765 |
SUPPORT |
|
9 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
11 |
16609424 |
SCREW M10x32 MM |
|
12 |
16507614 |
WASHER |
|
13 |
17038131 |
HEXAGON NUT M10 |
|
14 |
16504114 |
ELBOW COUPLING M18X1,5 |
|
15 |
98404882 |
PIPE SOCKET Ø8 MM |
|
16 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
17 |
8040165 |
INTAKE ELBOW |
