C13ENTY20.00

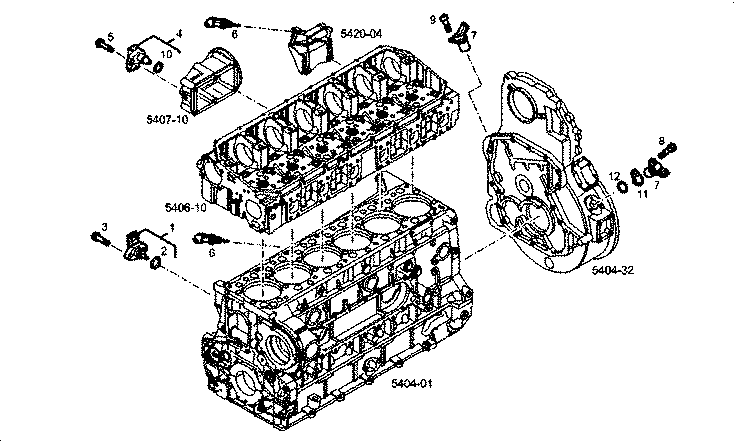

101670 SENSOR

Iveco/FPT SENSOR

Item Part number Description
1 4890193 SENSOR OIL PRESS. & TEMPER.
2 4895477 O-RING
3 4899110 HEXAGON BOLT
4 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
5 16597225 HEXAGON BOLT M6X18 MM
6 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
7 504096645 SENSOR
8 16689325 CYLIND-HEAD SCREW M6X25
9 16689024 CYLIND-HEAD SCREW M6X12
10 42546555 O-RING [FROM # 158928]
11 504163664 CONNECTING PLATE
12 17278481 O-RING Ø17,17 MM SP=1,78 MM
