C13ENTY21.00

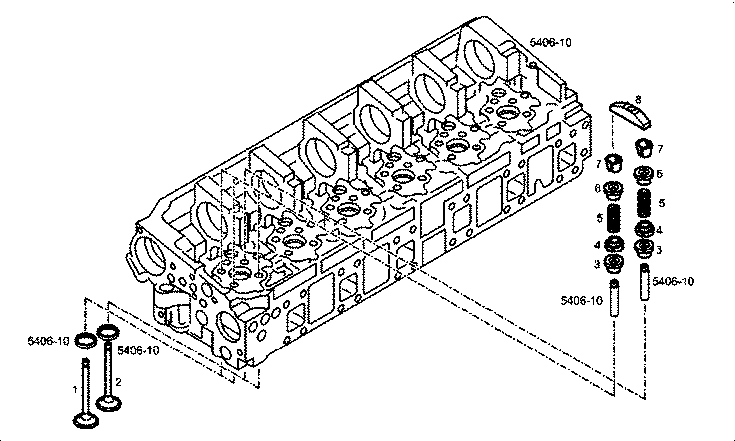

114582 ASSEMBLY VALVE

Iveco/FPT ASSEMBLY VALVE

Item Part number Description
1 500355778 INLET VALVE
2 504375458 EXHAUST VALVE (ENGINE)
3 504367479 SEAL RING
4 504107641 CAP
5 504100000 SPRING
6 98473050 TAPPET
7 14196370 VALVE CONE Ø9,82 MM
8 504002605 VALVE BRIDGE
