C13ENTY21.00

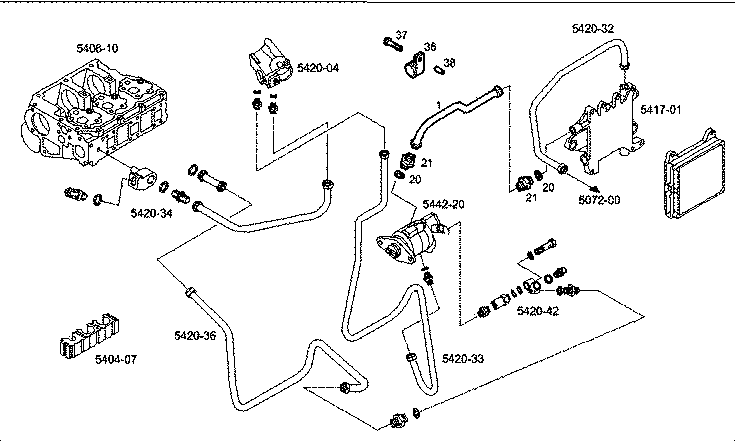

56097 PIPE TO FUEL SUPPLY PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500313907 | FUEL LINE |
| 20 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 21 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 36 | 17316592 | PIPE CLIP |
| 37 | 16586425 | HEXAGON BOLT M8X25 MM |
| 38 | 17816214 | SPACER Ø10X8,5X18 MM |
