C13ENTY22.00

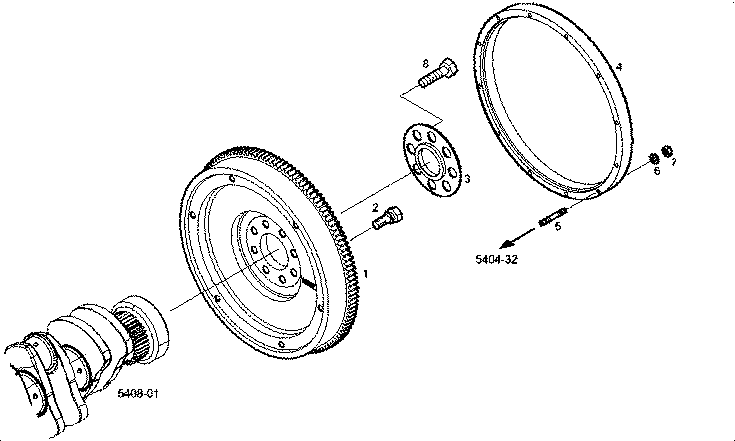

134404 FLYWHEEL ARRANGMENT - OPTION A13230505 FLYWHEEL ARRANGMENT FOR TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8051239 | FLYWHEEL |
| 2 | 99430395 | HEXAGON BOLT |
| 3 | 8051548 | CENTERING RING |
| 4 | 8051649 | SPACING BAR |
| 5 | 17368924 | STUD M10X80 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17038131 | HEXAGON NUT M10 |
| 8 | 16587525 | HEXAGON BOLT M10X45 MM |
