Catalogue Menu
C13ENTY22.00

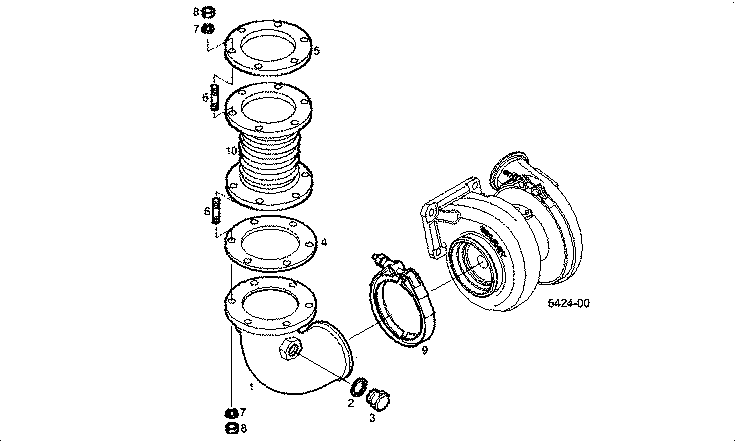

134416 AIR LINES - OPTION A40030526 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 5801558716 | EXHAUST BRANCH |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 16992211 | THREADED PLUG M12X1,5 |
| 4 | 8010072 | GASKET |
| 5 | 8022504 | FLANGE |
| 6 | 16731234 | STUD M10X1,5X25 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 8041929 | CLIP |
| 10 | 8016096 | EXHAUST BELLOWS |
