C13ENTY22.00L001

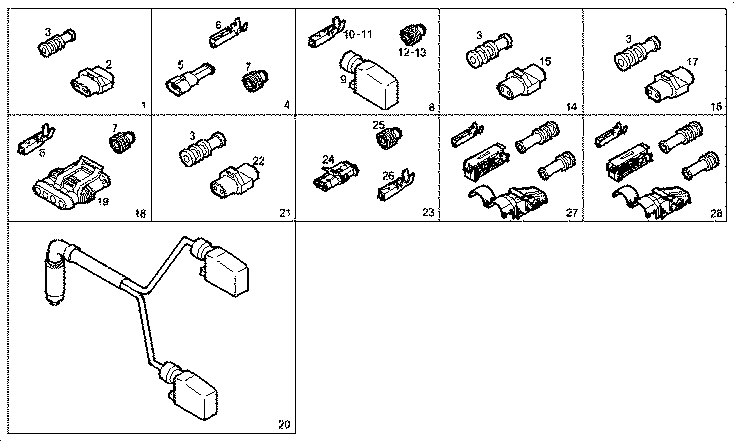

140005 AFTER TREATMENT-ELECTR. PARTS

Iveco/FPT AFTER TREATMENT-ELECTR. PARTS

Item Part number Description
1 8045175 WIRE CONNECTOR ASSY
2 16849487 WIRE CONNECTOR
3 500382761 RUBBER BUSH BLUE
4 8045172 WIRE CONNECTOR ASSY
5 504154752 CONNECTION
6 16852154 TERMINAL
7 16849983 GASKET
8 8045173 CONNECTION ASSY
9 504144930 WIRE CONNECTOR
10 12309290 TERMINAL
11 12309390 TERMINAL
12 4835259 GASKET
13 12309080 GASKET
14 8045169 CONNECTION ASSY
15 16849387 WIRE CONNECTOR
16 8045170 CONNECTION ASSY
17 16849388 WIRE CONNECTOR
18 8045174 WIRE CONNECTOR ASSY
19 504145901 PLUG COUPLING
20 5801496823 WIRE/CABLE
21 8045171 WIRE CONNECTOR ASSY
22 504147376 CONNECTION
23 8031989 WIRE CONNECTOR ASSY
24 98435346 WIRE CONNECTOR 2 pin female
25 4861936 RUBBER BUSH YELLOW
26 98435372 TERMINAL
27 5801497483 WIRE CONNECTOR
28 5801497485 WIRE CONNECTOR
