C78ENAM12.00

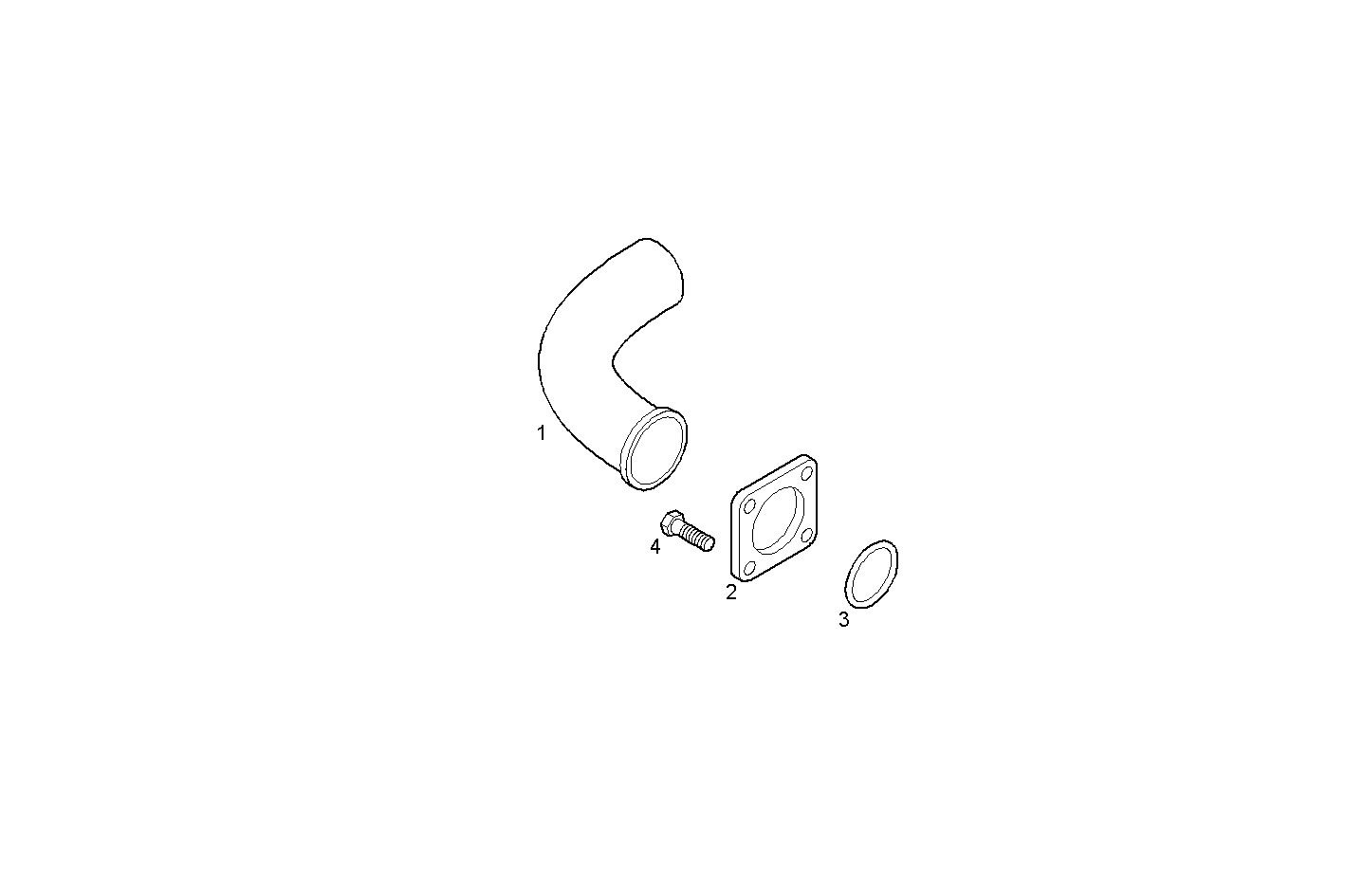

3390.084 SEA WATER LINES - water inlet to pump
Item | Part number | Description |
---|---|---|
1 | 8111431 | WATER PIPE INLET |
2 | 8111433 | FLANGE |
3 | 17290281 | O-RING Ø63,09 MM SP=3,53 MM |
4 | 16587125 | HEXAGON BOLT M10X25 MM |
