C78ENSM20.10

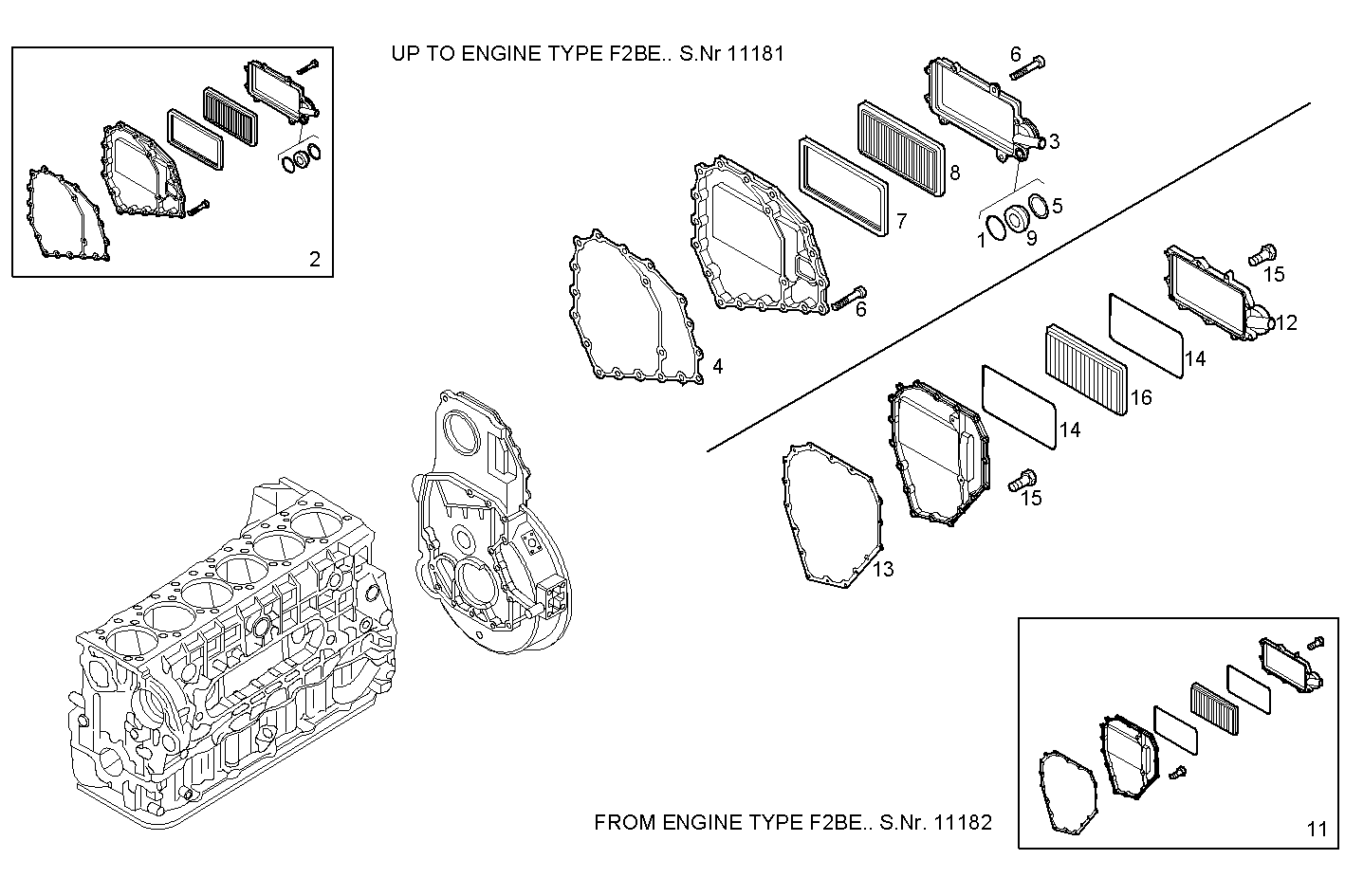

0450.227 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 17278381 | O-RING |
| 2 | 500383034 | COVER ASSY |
| 3 | 500321610 | COVER |
| 4 | 500321611 | FLAT ENGINE GASKET |
| 5 | 500321612 | FLAT ENGINE GASKET |
| 6 | 500383042 | CYLIND-HEAD SCREW M6 |
| 7 | 500398649 | GASKET |
| 8 | 500311355 | FILTER |
| 9 | 500343244 | VALVE |
| 11 | 504212069 | COVER ASSY |
| 12 | 500361556 | COVER |
| 13 | 500383038 | FLAT ENGINE GASKET |
| 14 | 500383043 | GASKET |
| 16 | 500383040 | FILTER |
