C78ENSM20.10

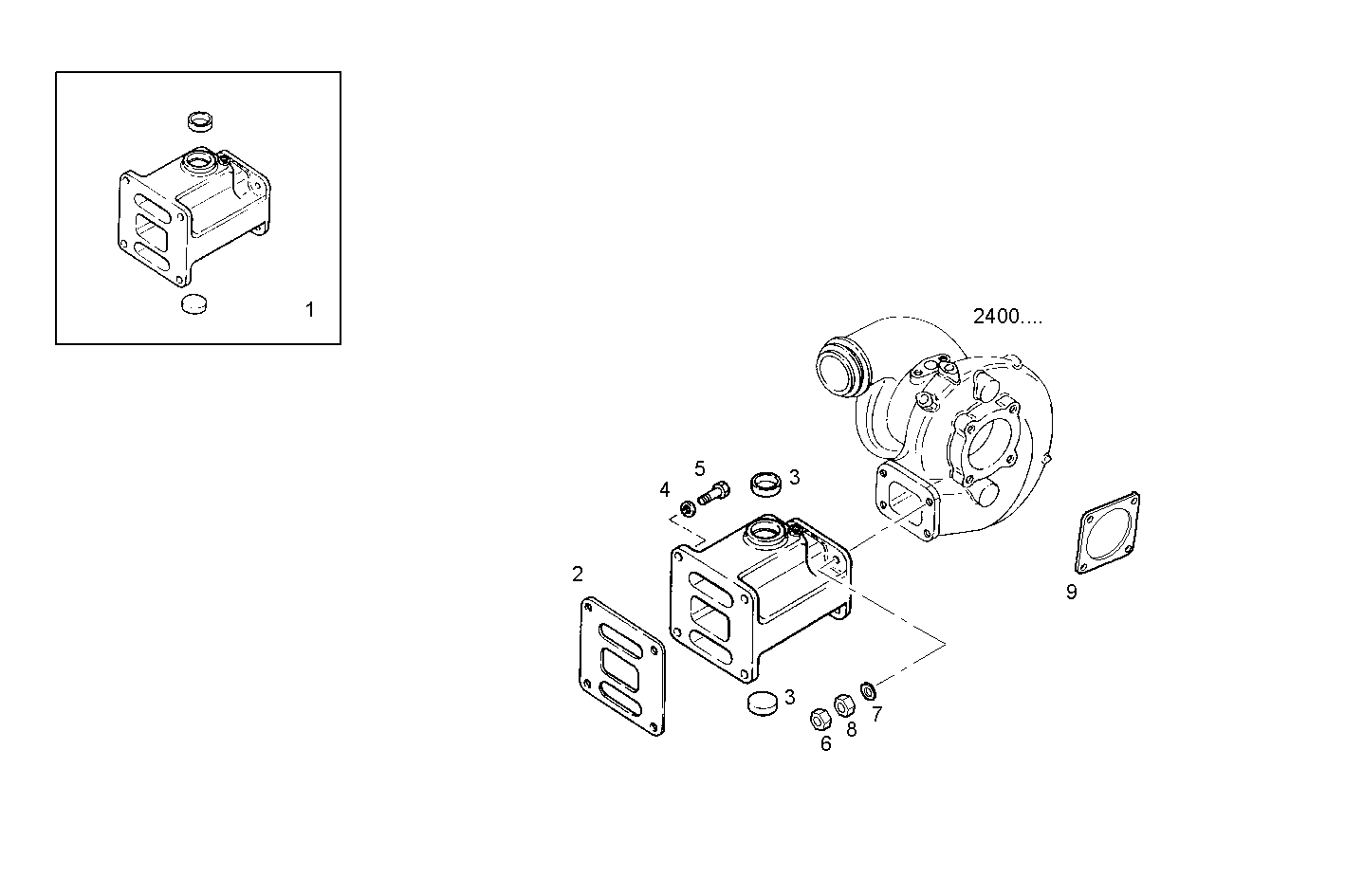

0780.005 EXHAUST MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 8030821 | MARINE EXHAUST PIPE ASSY |
2 | 8032873 | GASKET |
3 | 16991170 | LOCK PLUG Ø36 MM |
4 | 17095224 | WASHER Ø12X20 MM |
5 | 17458334 | HEXAGON BOLT |
6 | 16979635 | HEXAGON NUT M10 |
7 | 16665604 | WASHER Ø10X20 MM |
8 | 17042631 | NUT M10X1,5 (10) |
9 | 8030906 | GASKET |
