C78ENSM20.10

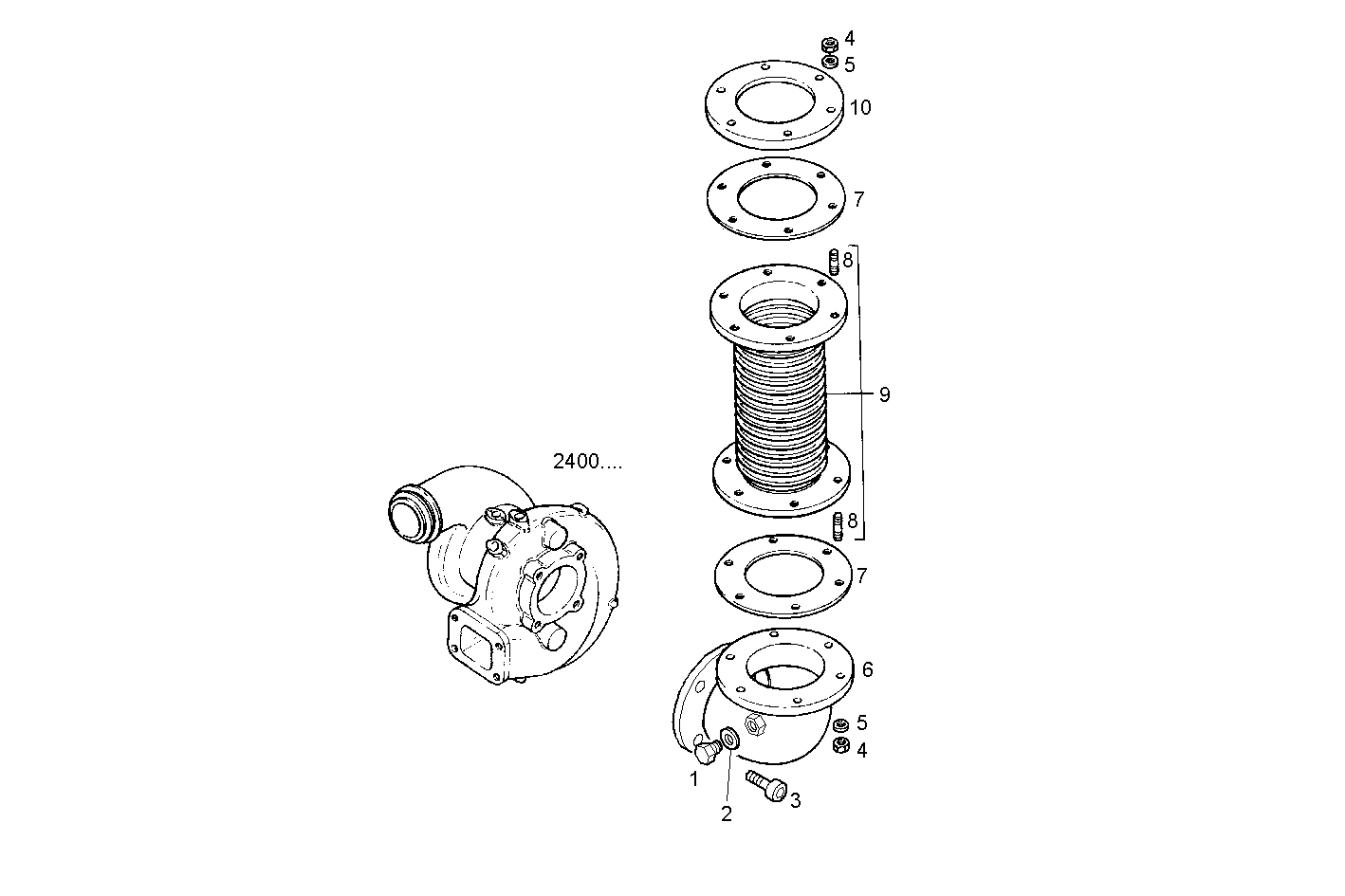

2423.004 AIR LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16992211 | THREADED PLUG M12X1,5 |
| 2 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 3 | 16607625 | SCREW M10X25 |
| 4 | 17038131 | HEXAGON NUT M10 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 8034359 | EXHAUST ELBOW |
| 7 | 8009600 | GASKET |
| 8 | 16731234 | STUD M10X1,5X25 |
| 9 | 8024880 | EXHAUST BELLOWS |
| 10 | 8103591 | FLANGE |
