C78ENSM20.10

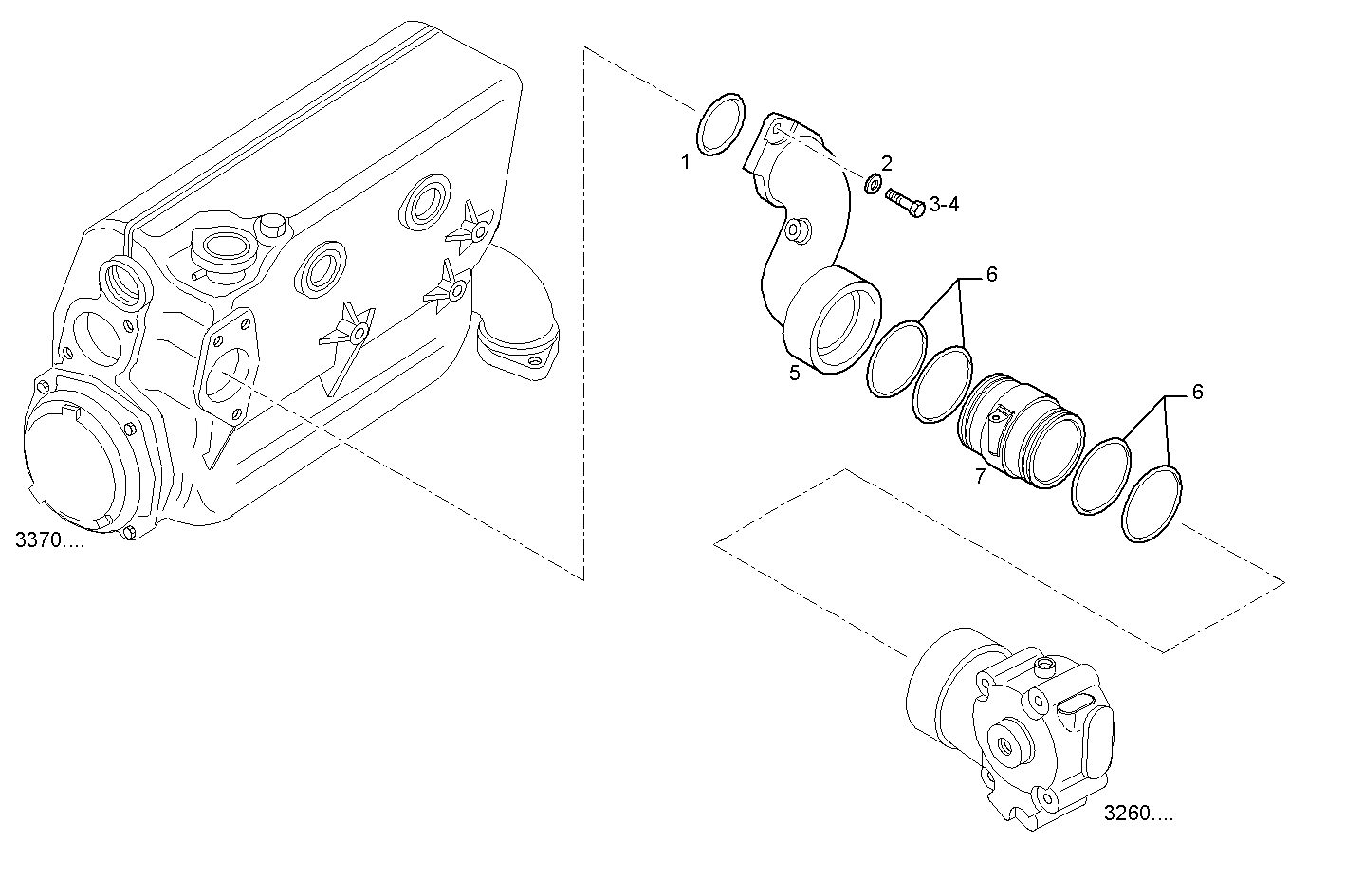

3239.002 HEAD WATER EXIT PIPE
Item | Part number | Description |
---|---|---|
1 | 17290381 | O-RING Ø66,27 MM SP=3,53 MM |
2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
3 | 16606724 | HEXAGON BOLT M8X90 MM |
4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
5 | 8029597 | WATER PIPE |
6 | 17290581 | O-RING Ø72,63X3,53 MM |
7 | 8025307 | WATER PIPE |
