C78ENSM20.10

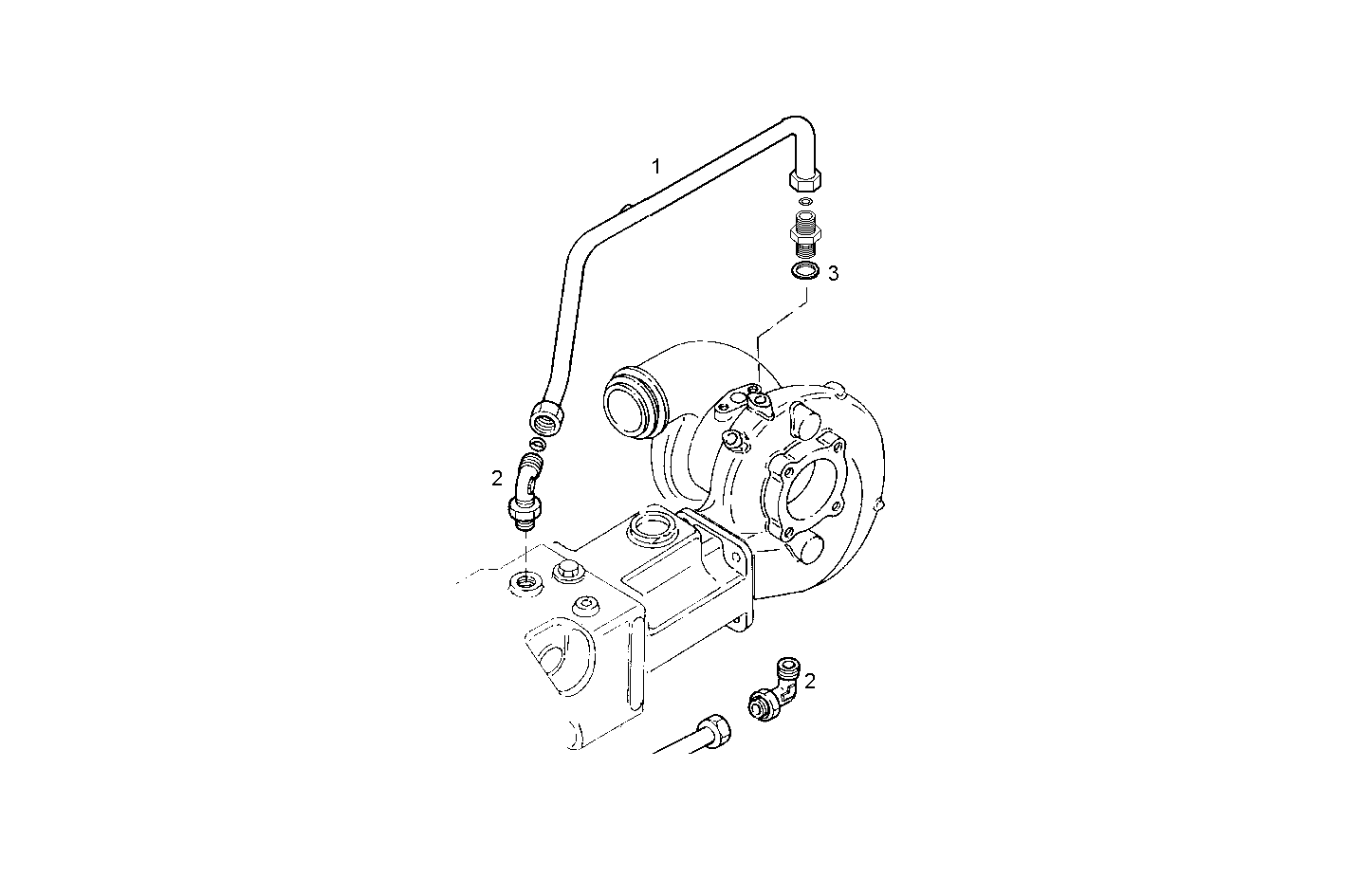

3248.018 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8030751 | WATER PIPE |
| 2 | 98433191 | PIPE SOCKET [from 07-92] |
| 3 | 17750985 | WASHER Ø22X28X1,5 MM |
| Item | Part number | Description |
|---|---|---|
| 1 | 8030751 | WATER PIPE |
| 2 | 98433191 | PIPE SOCKET [from 07-92] |
| 3 | 17750985 | WASHER Ø22X28X1,5 MM |
