C78ENSM20.10

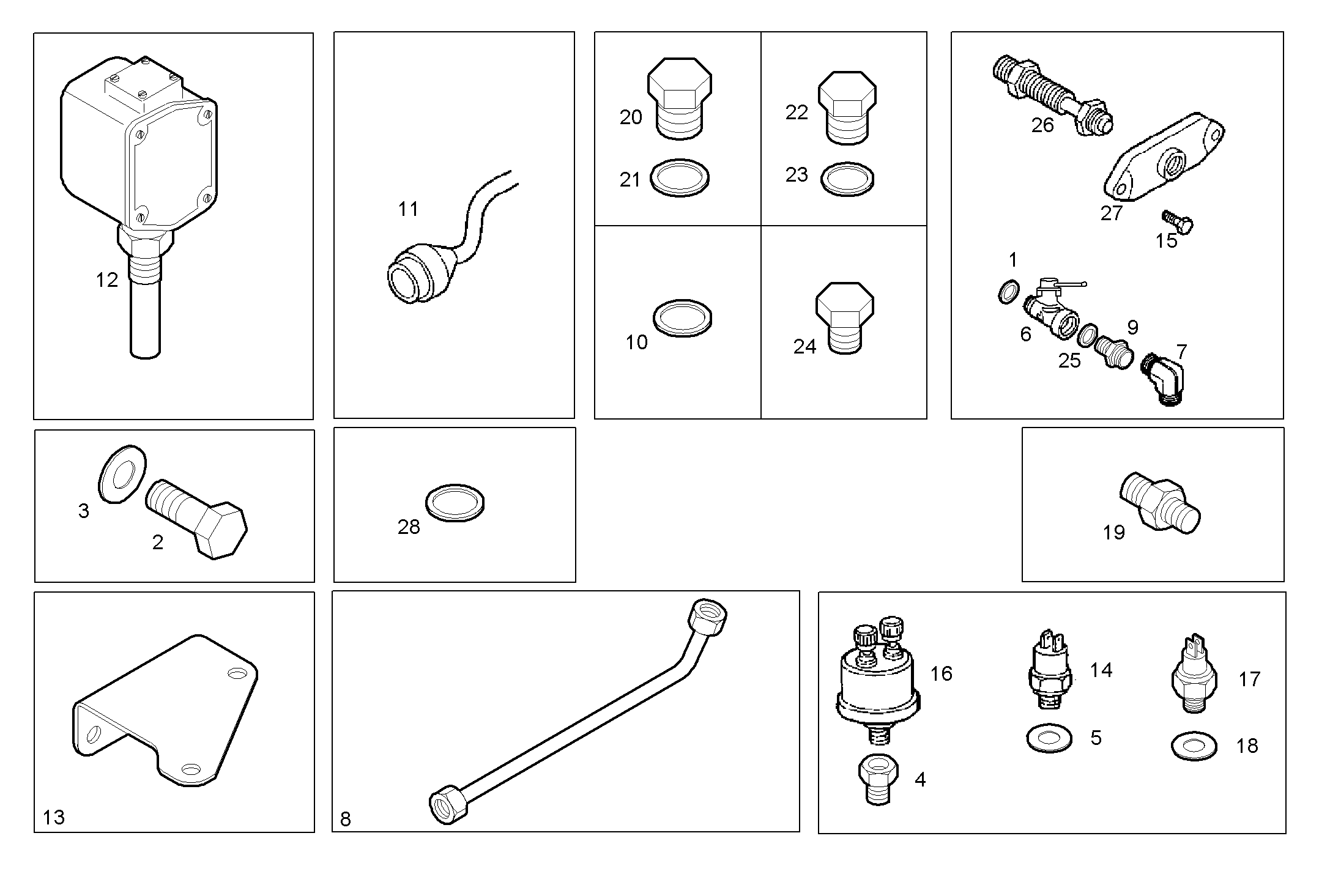

A16030512 SENDERS - R.I.NA [FROM 19/04/08] [FROM 19/04/08]

Iveco/FPT SENDERS

Item Part number Description
1 99489016 SEAL GASKET Ø10X17 MM SP =1,5
2 16603625 HEXAGON BOLT M6X16 MM
3 17088474 WASHER Ø6X12 MM
4 8032383 PIPE SOCKET M14X1,5
5 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
6 8037665 RETAINER COCK
7 8033819 ELBOW COUPLING
8 8050811 HOSE
9 8033816 THREADED UNION
10 98474305 WASHER Ø10X17 MM SP=2,3
11 8034358 EXTENSION
12 8110742 TRANSMITTER
13 8051383 FASTENING BRACKET
14 8037368 TRANSMITTER
15 16597925 HEXAGON BOLT M8X14 MM
16 8100417 TRANSMITTER TPO
17 8100418 TRANSMITTER TTA
18 4858608 SEAL GASKET dia.14x19,5x1,5
19 4852379 PIPE SOCKET
20 16992611 THREADED PLUG M22X1,5
21 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
22 16993311 THREADED PLUG M18X1,5
23 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
24 11903211 LOCK PLUG M12X1,25
25 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
26 8018673 PICK-UP
27 8033812 PLATE
28 11271460 GASKET Ø21X26X1,5 MM
