C78ENSM20.30

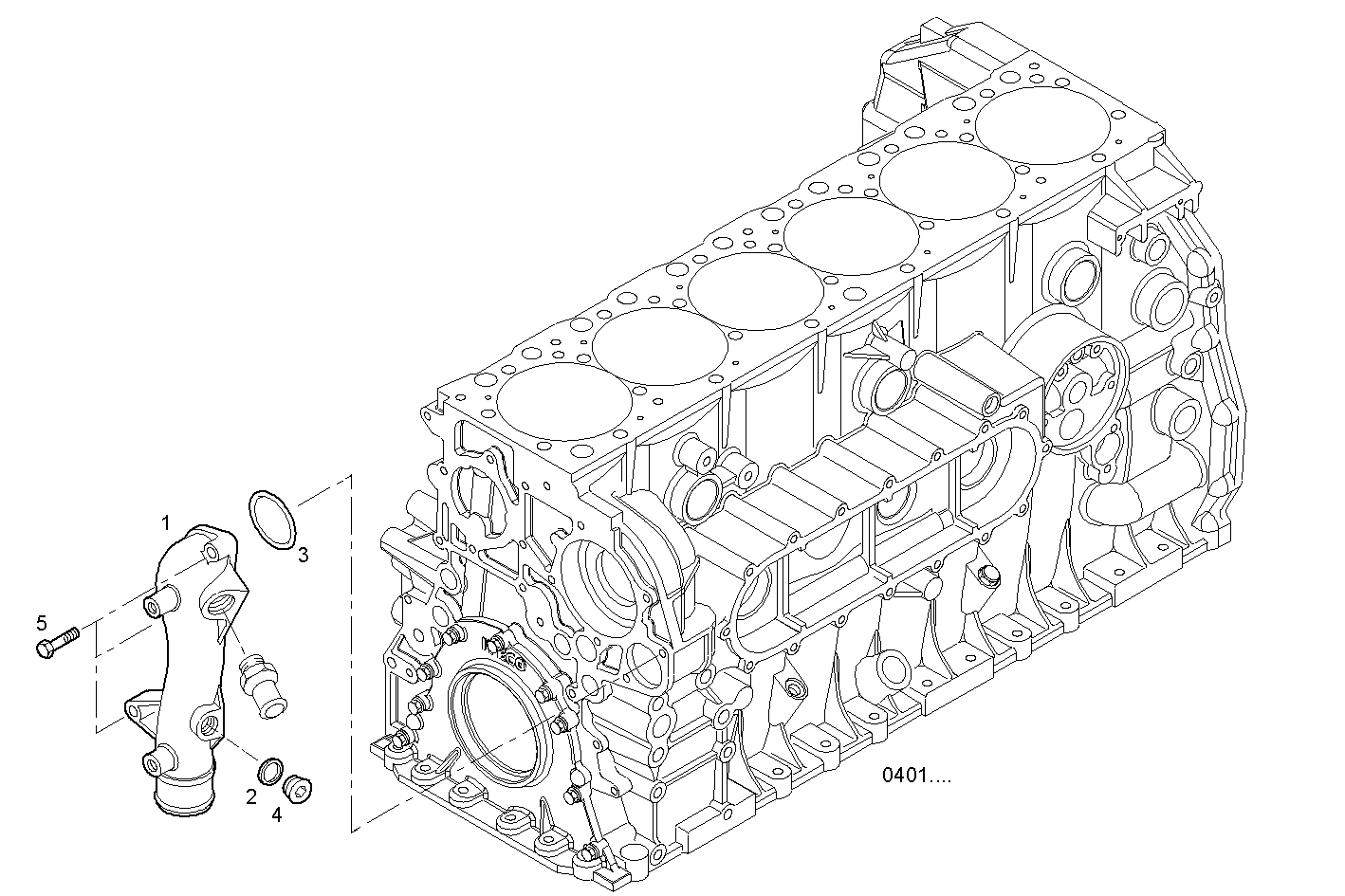

3230.041 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 99469567 | WATER PIPE |
| 2 | 99434480 | SEAL GASKET Ø30X40 MM |
| 3 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 4 | 16993011 | THREADED PLUG M30X1,5 |
| 5 | 16606124 | HEXAGON BOLT M8X50 MM |
