C78ENSM20.30

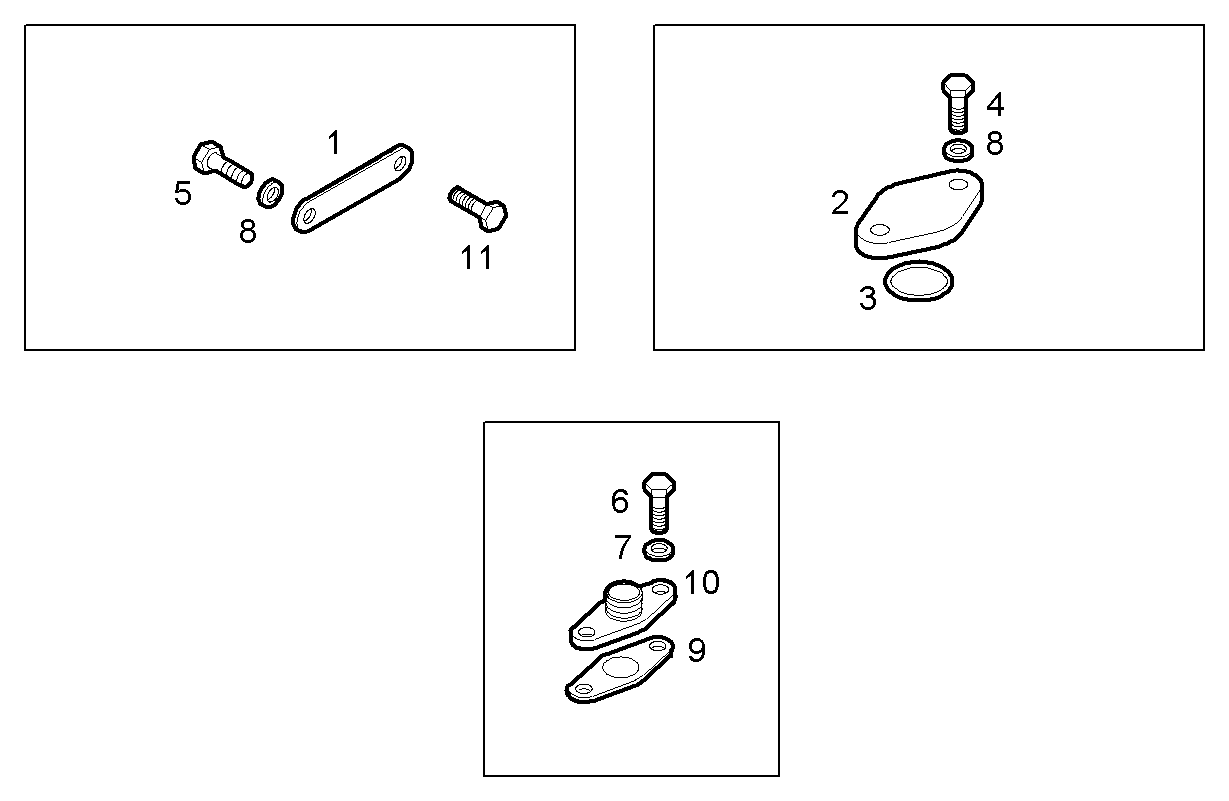

5770.048 SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8033224 | RETAINER |
2 | 8032550 | FLANGE |
3 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
5 | 16605424 | SCREW M8X16 MM (8.8) |
6 | 16603677 | HEXAGON BOLT M6X16 MM |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 98415922 | FLAT ENGINE GASKET |
10 | 4764795 | THREADED UNION |
11 | 16605524 | HEXAGON BOLT M8X20 MM |
