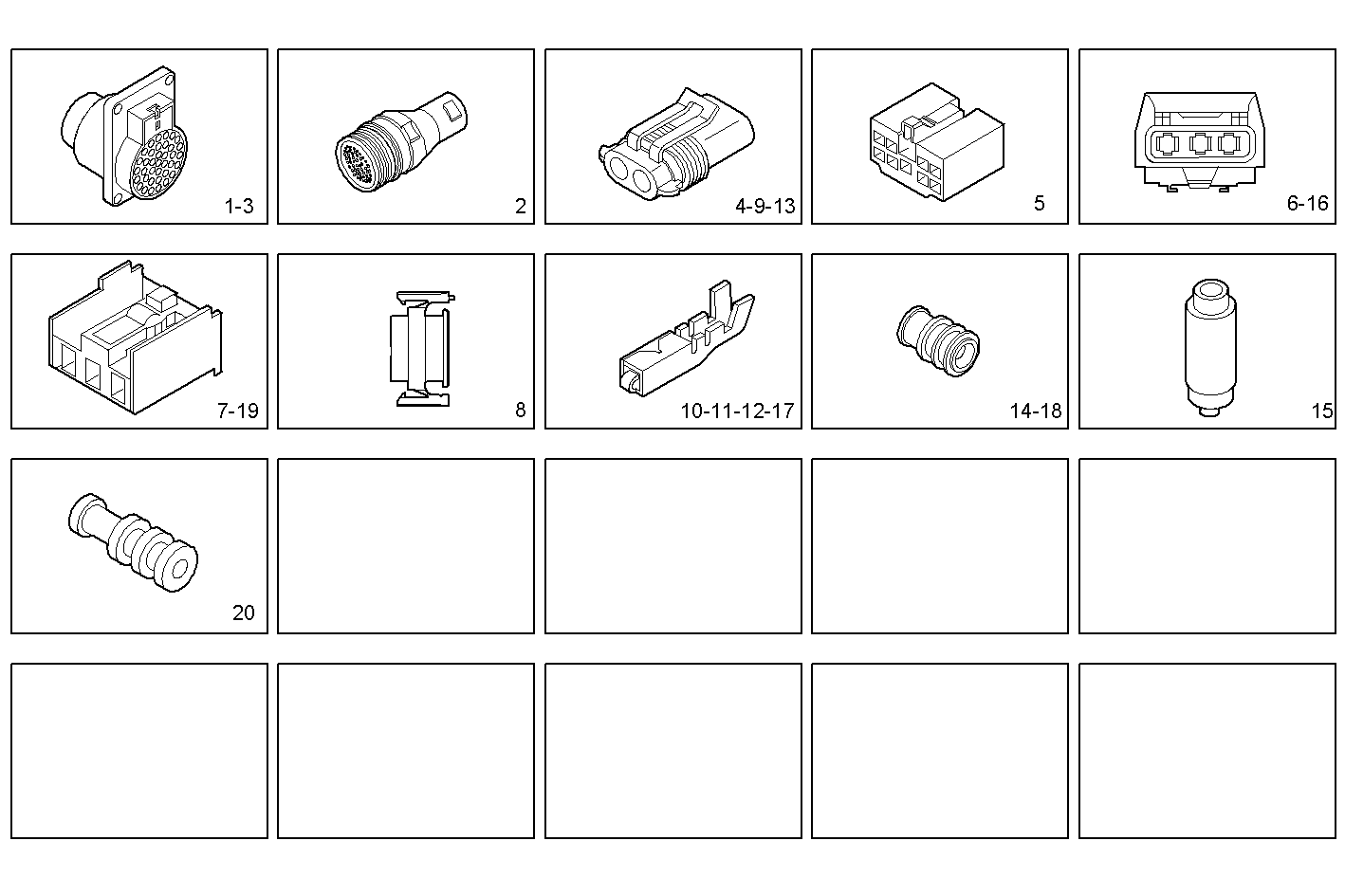

| Item |
Part number |
Description |
|
1 |
504013633 |
CONNECTION |
|
2 |
8036545 |
WIRE CONNECTOR |
|
3 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
4 |
8030571 |
WIRE CONNECTOR assy 2 pin female - packard |
|
5 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
6 |
8030575 |
CONNECTION ASSY |
|
7 |
8031430 |
CONNECTION ASSY |
|
8 |
12331387 |
CONNECTION |
|
9 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
10 |
98435372 |
TERMINAL |
|
11 |
12366054 |
TERMINAL |
|
12 |
99462549 |
TERMINAL |
|
13 |
12330587 |
WIRE CONNECTOR |
|
14 |
12329982 |
GASKET |
|
15 |
12267380 |
CONNECTION |
|
16 |
99430234 |
PLUG COUPLING |
|
17 |
12309290 |
TERMINAL |
|
18 |
4835259 |
GASKET |
|
19 |
12366680 |
WIRE CONNECTOR |
|
20 |
4861936 |
RUBBER BUSH YELLOW |
