Catalogue Menu
C78ENTC26.00A004

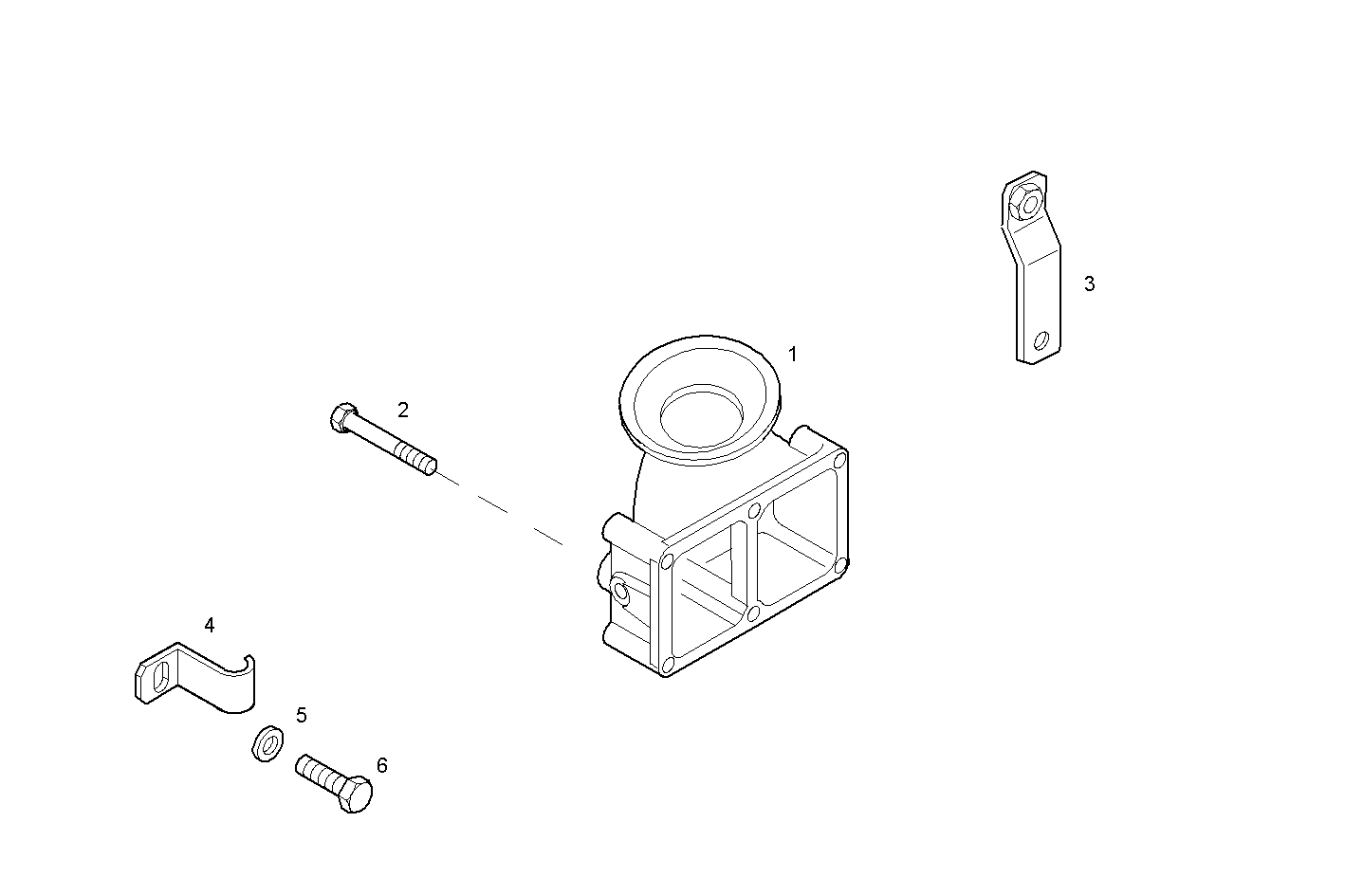

0710.229 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504074687 | INTAKE ELBOW |
| 2 | 16593125 | HEXAGON BOLT M10X100 MM |
| 3 | 8008113 | RETAINER |
| 4 | 17316690 | FASTENING BRACKET Ø20,5 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
