C78ENTC26.00A004

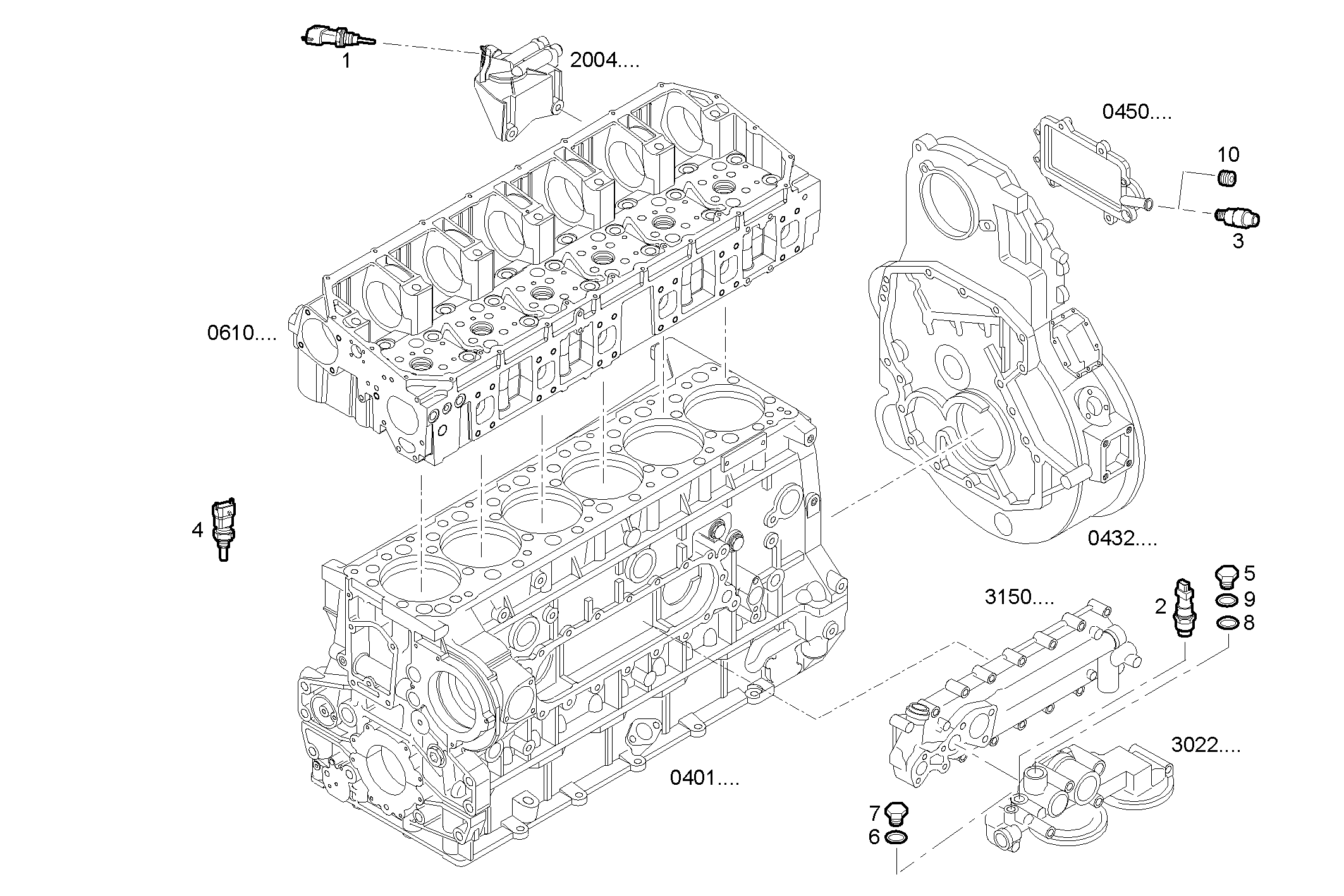

1712.001 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 500346074 | TRANSMITTER Pressure |
| 2 | 500351609 | SENSOR OIL PRESSURE [UP TO # 50367] |
| 3 | 500346371 | CHOCKED FILTER INDIC. FILTRO BLOW-BY |
| 4 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 5 | 500337200 | THREADED PLUG [FROM # 50368] |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 16992415 | THREADED PLUG M16X1,5 |
| 8 | 17278181 | O-RING [FROM # 50368] |
| 9 | 500337199 | O-RING [FROM # 50368] |
| 10 | 504051237 | THREADED PLUG DIAM=1/4" |
