C78ENTC26.00A004

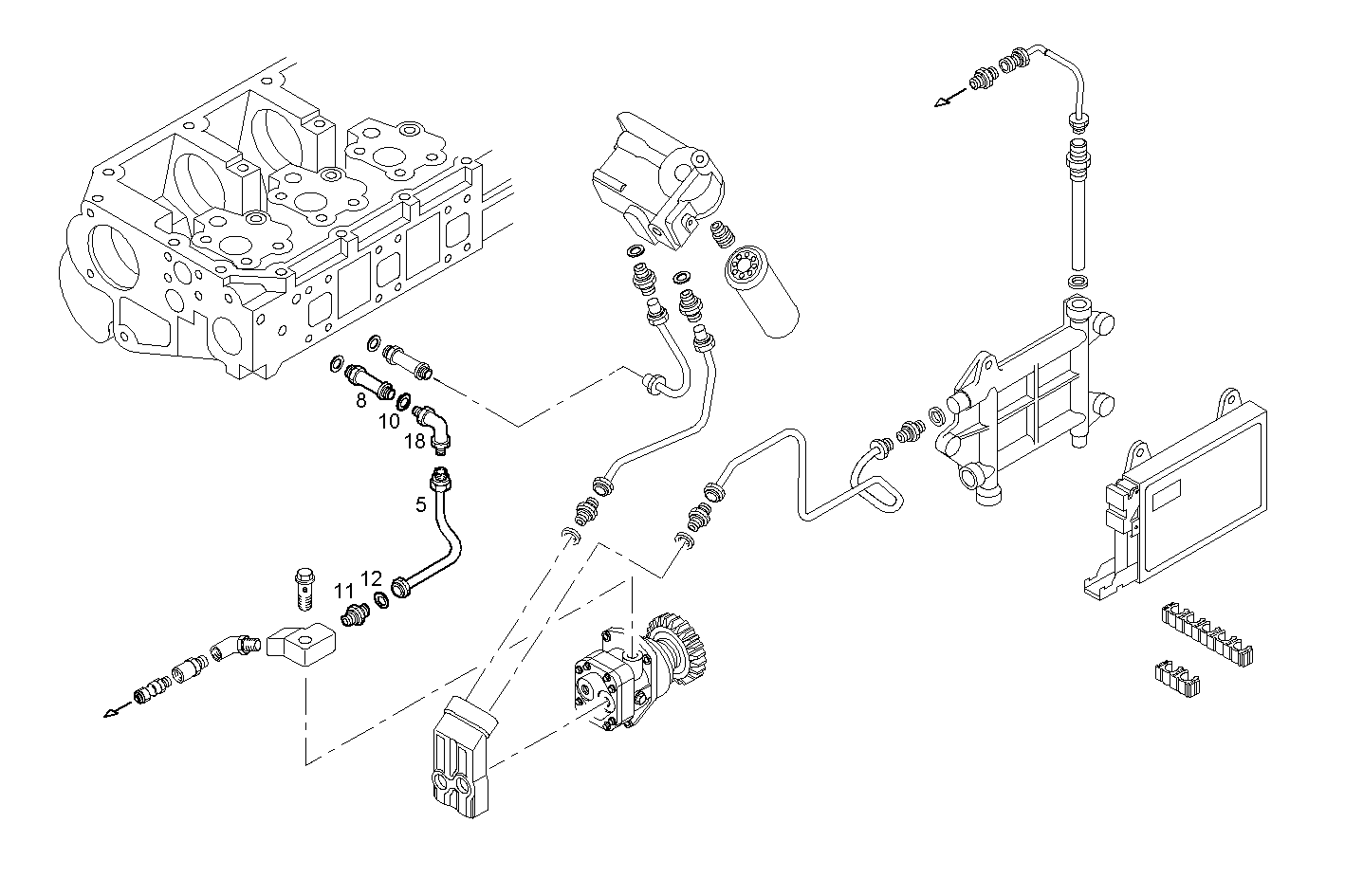

2036.000 FUEL LINES - RETURN TO FUEL PUMP

Iveco/FPT FUEL LINES - RETURN TO FUEL  PUMP

Item Part number Description
5 500343663 FUEL LINE
8 99455351 CONNECTION PIPE M14X1,5 - M18X1,5
10 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
11 99489019 WASHER Ø16X24 MM SP=1,5 MM
12 504081274 THREADED UNION M16X1,5 - M18X1,5
18 16504114 ELBOW COUPLING M18X1,5
