C78ENTC26.00A004

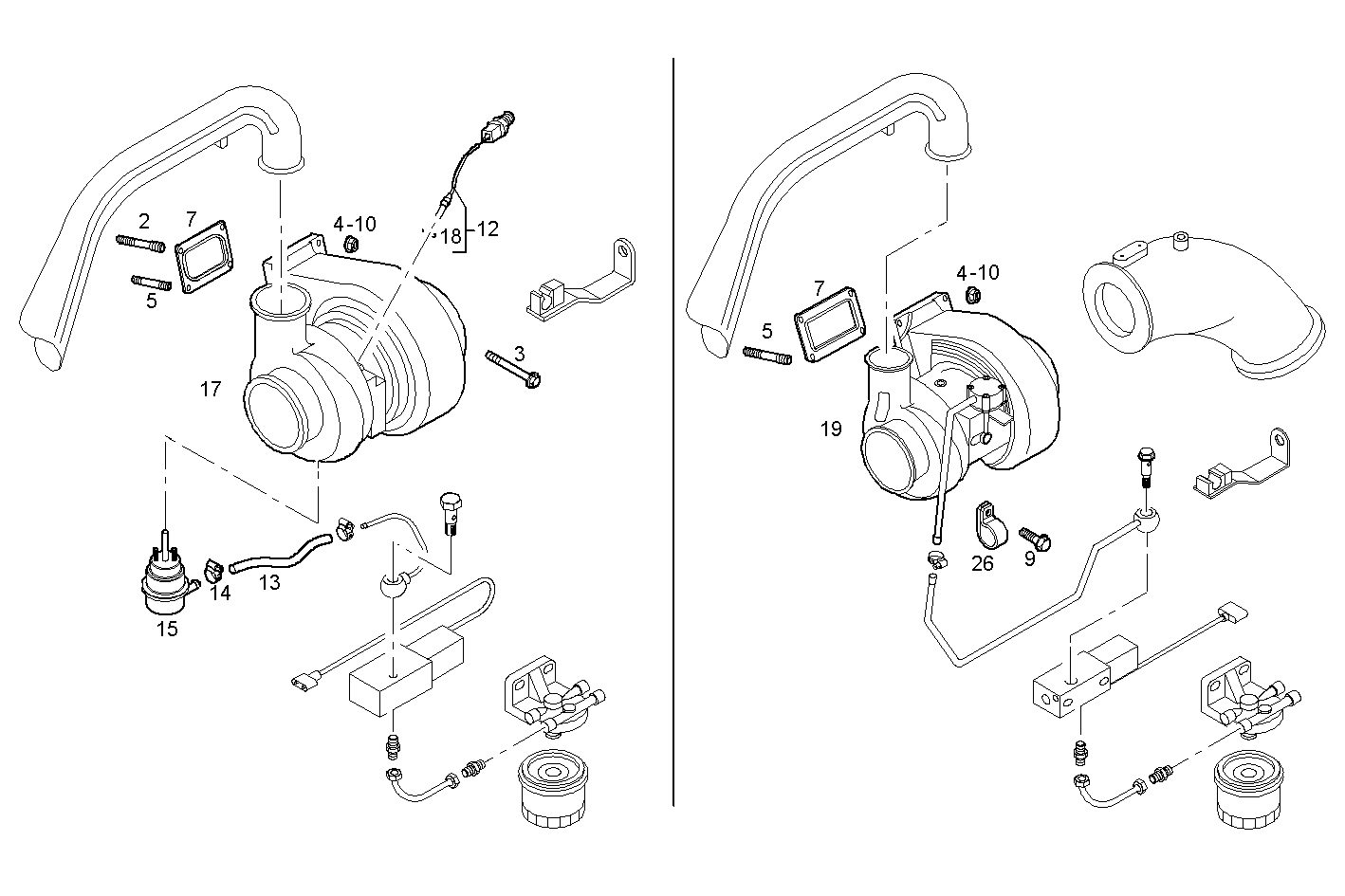

2400.269 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 2 | 500346862 | STUD M6X1X60 MM |
| 3 | 16591925 | HEXAGON BOLT M6X50 MM |
| 4 | 17044625 | HEXAGON NUT M6 |
| 5 | 16731370 | STUD M10X30 MM |
| 7 | 98451118 | GASKET |
| 9 | 16597925 | HEXAGON BOLT M8X14 MM |
| 10 | 500300795 | HEXAGON NUT M10X1,5 |
| 12 | 500332298 | SENSOR |
| 13 | 500332300 | HOSE [UP TO # 17841] |
| 14 | 500332605 | CLIP |
| 15 | 500361013 | VALVE [UP TO # 17841] |
| 17 | 500355858 | VARIAB.GEOM.TURBINE ASSY [UP TO # 17841] |
| 18 | 42536617 | O-SEAL |
| 19 | 504017225 | VARIAB.GEOM.TURBINE ASSY [FROM # 17842] |
| 26 | 10450090 | PIPE CLIP Ø8 MM |
